Available in Single Position,
Single-ended, Cordset Plugs and Receptacles
(Size #8 and #12)
Standard lengths of 1, 2, 4, 5 and 10 Meters.
|
|
|
Our ATHD Series™ Cable Assemblies are an overmolded, strain relief option based on our ATHD Series™ Heavy-Duty Power Connectors, which provide an environmentally sealed connection system and solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible, tactile, "click" provide circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering up to 75A of power in our cable assemblies.
|
|
|
|
|
|
|
|
|
Our Plug assemblies feature our StructurePlus™ ATHD design, an engineered, one-piece, solid body construction specifically designed for cable assembly operations. The added connector structure results in enhanced connection integrity that is an essential component for connecting cable in harsh environments.
|
|
|
|
|
|
|
|
|
|
|
The process utilizes first-quality resins which encapsulate the wire terminations into the connector housing creating a highly functional & compact strain relief to ensure a long service life. Built to
exceptional quality standards, the resulting barrier of protection provides IP68 rated (1M of water for 24 hrs in mated condition) sealing capability, preventing liquid ingress for a variety of markets such as Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural.
|
|
|
|
|
|
|
| Click Image Above To Download Our Literature
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Available in Single Pole
Our ATHD Series™ Single-Pole, Heavy Duty Power Connectors provide an IP67/69K rated (mated), environmentally sealed connection system and viable solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible click, tactile feel provide circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering up to 100A of power. The rugged circular housings can be used as an in-line, BoardLock™ ATFHD or easy to install sealed flange mount connection system for heavy-duty applications.
|
|
|
Features
- Intermatable with industry standard connectors
- Circular, Thermoplastic Housing
- Integral Latch Prevents Inadvertent Disconnect
- In-line (Wire-to-Wire), Flange Mount or BoardLock™ Options
- Customized project-specific colors
Available Modifications
- -BMXX - BoardLock™ ATFHD Receptacle
- -L009 - Sealed Front Flange Receptacle for inside
mounting
- -L013 - Sealed Rear Flange Receptacle for outside mounting
- -E003 - Endcap
- -OM - StructurePlus™ ATHD Overmold Capable
Applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural
|
|
|
|
|
| Click Image Above To Download Our Literature
|
|
|
|
|
|
|
|
|
|
|
Our Advanced Design Team™
is always ready for you!
|
|
|
With Microsoft® Teams, we are working with everyone,
from all over the globe, on all types of projects.
|
|
|
|
|
|
|
Real-time collaboration and solutions from the comfort
of your Home or Office workstation.
Access to our Team of Product Managers, Engineers
and Customer Service Representatives.
|
|
|
|
|
|
|

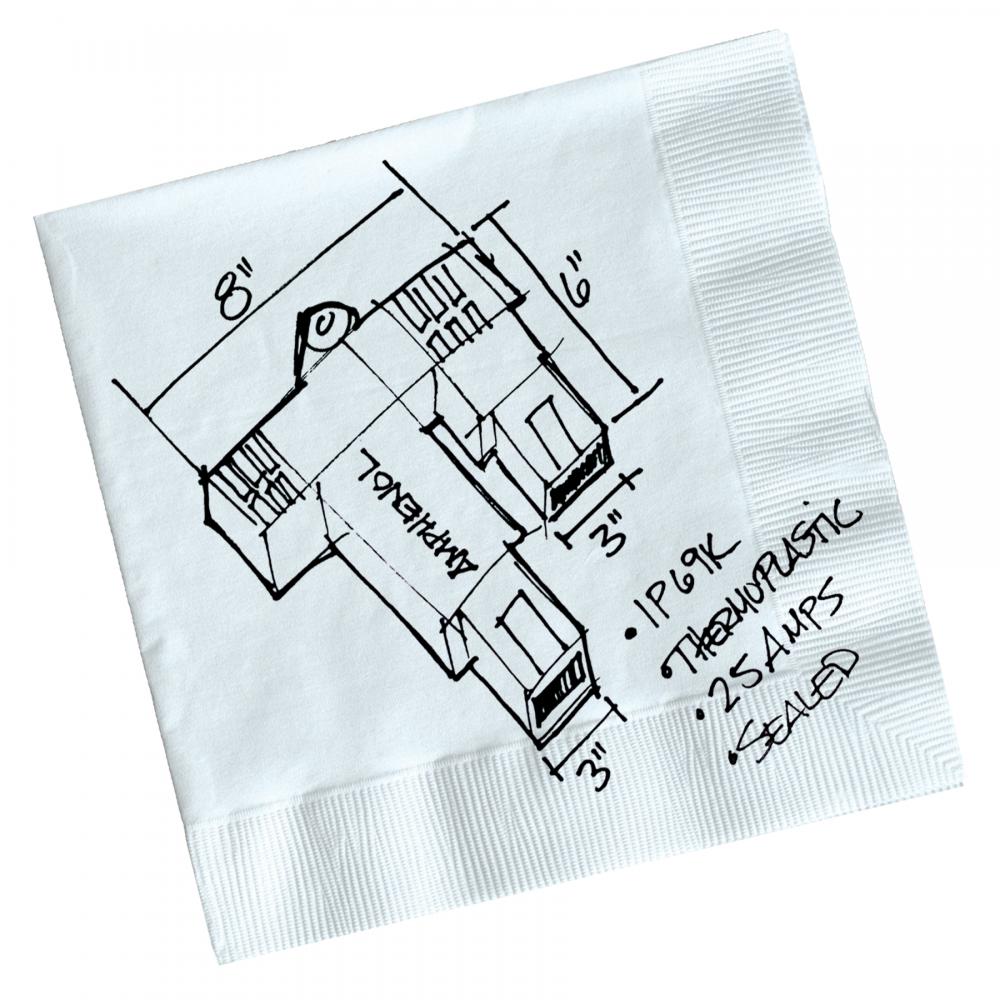

We welcome all custom solution challenges!
|
|
|
|
|
|
|
|
|
