Updating you on our ever-expanding product lines and Company news.
|
|
|
|
|
|
|
This months Newsletter highlights the updates to our PanelMate™ Family of panel mounted flanged receptacles, as well as our new AT Series™ Cable Assemblies.
|
|
|
|
|
|
|
|
|
With our ever-growing PanelMate™ flanged receptacle product lines, it was time to update our old literature with a comprehensive Family document showing ALL of our options. Currently available in PanelMate™ AT, PanelMate™ ATM, PanelMate™ ATP and PanelMate™ ATHD series, we have the options you've asked for.
Our NEW 18-page document contains ALL of our current PanelMate™ options, along with detailed part descriptions and a Back End Configuration table to make finding your perfect solution easier than ever.
|
|
|
|
|
|
|
Panel Mounted Receptacle Options
for AT, ATM, ATP and ATHD Series.
|
|
|
|
|
|
|
|
|
Amphenol Sine
Systems’ PanelMate™ Family of Receptacles are engineered with a one-piece, sealed, flanged design for rapid and secure mounting. Their durable, high-temperature, silicone, facial seal provides a barrier of protection from lubricating oils, hydraulic fluids and fossil fuels to withstand the challenges and complexities of harsh environment applications. Also available in a two-piece, sonically-welded,
flange design for applications requiring an externally operated connection with 4 pass through holes.
|
|
|
All PanelMate™ product lines accept A Series™ components and are compatible with other industry standard mating connectors.
|
|
|
Available in:
- PanelMate™ AT: 2, 3, 4, 6, 8, 12, 13 and 18 position
- PanelMate™ ATM: 12 position
- PanelMate™ ATP: 2, 4 and 6 position
- PanelMate™ ATHD: Single Position
|
|
|
Features- Flanged or Flangeless; Straight or 90° Right Angle Pin Orientation
- Thermoplastic housing with integrated latch for mating
- High-temperature silicone seals provide superior sealing
- Wedgelocks ensure proper contact alignment & retention
- Compatible with existing standard products industry-wide
- Wide variety of optional back end configurations
|
|
|
|
|
|
|
| IP68 (1M of water for 24 hours) / IP69K (in mated condition)
|
|
|
|
|
|
|
| Click Image Above To Download Our Literature
|
|
|
|
|
Our PanelMate™ AT, ATM, ATP and ATHD Series meet all the performance criteria and specifications of the AT, ATM, ATP and ATHD Series™, and is available in a variety of color modifications. Contact Customer Service for more information.
|
|
|
|
|
|
|
|
|
Developed in response to an overwhelming request from our
customers, we now offer an overmolded strain relief option for our high-performance, thermoplastic, cost-effective AT Series™ Connectors.
|
|
|
|
|
|
|
|
|
|
|
Amphenol Sine Systems’ AT Series™ Cable Assemblies are an overmolded strain relief option for our high-performance, thermoplastic, cost-effective AT Series™ Connectors.
Available in 2, 3, 4, 6, 8 and 12 position Plugs and Receptacles with single-ended cordset standard lengths of 1, 2, 4, 5 and 10 Meters. Contact Customer Service for custom cable length options.
|
|
|
Features- Enhanced Sealing Protection
- Relieves Stress on Conductors
- Ergonomic Grip Design
- Integrated Lanyard Holes
- Cosmetically Appealing
- Tamper-Proof
- Protective Caps Available for 2, 3, 4, 6, 8 & 12 Position Plugs
|
|
|
Our Plug assemblies feature our StructurePlus™ AT design, an engineered, one-piece, solid body construction specifically designed for cable assembly operations. The added connector structure results in enhanced connection
integrity that is an essential component for connecting cable in harsh environments.
|
|
|
|
|
|
|
The process utilizes first-quality resins which encapsulate the wire terminations into the connector housing creating a highly functional & compact strain relief to ensure a long service life. Built to exceptional quality standards, the resulting barrier of protection provides IP68 rated (1M of water for 24 hrs in mated condition) sealing capability, preventing
liquid ingress for a variety of markets such as Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural.
|
|
|
|
|
|
|
| IP68 (1M of water for 24 hours)
|
|
|
|
|
|
|
| Click Image Above To Download Our Literature
|
|
|
|
|
|
|
|
|
|
|

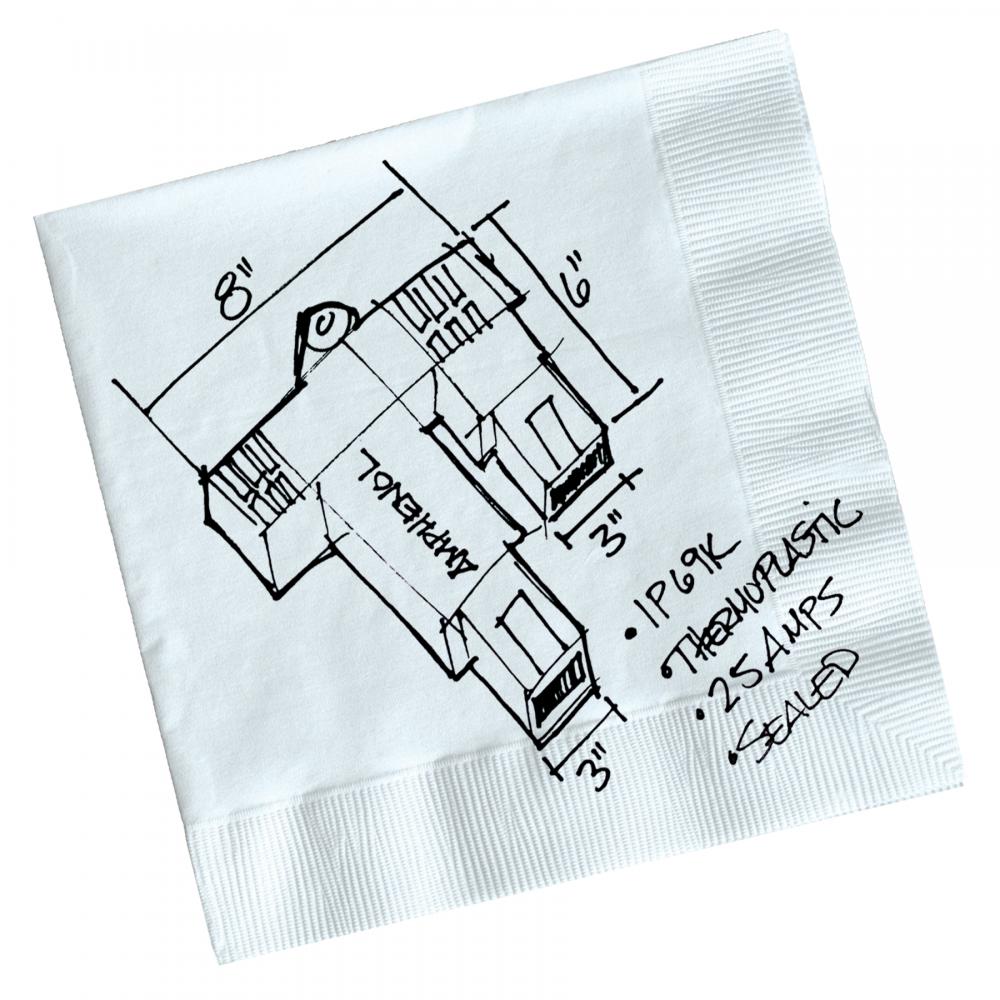

Our Advanced Design Team™
is always ready for you!
With Microsoft® Teams, we are working with everyone,
from all over the globe, on all types of projects.
|
|
|
|
|
|
|
Real-time collaboration and solutions from the comfort
of your Home or Office workstation.
Access to our Team of Product Managers, Engineers
and Customer Service Representatives.
|
|
|
|
|
|
|
We welcome all custom solution challenges!
|
|
|
|
|
|
|
|
|
NOTE: Even if you don't have a Microsoft® Teams account, you have nothing to worry about. Our Team member will initiate the chat/video conference from our end and provide you a link via email or text. Meetings can take place on any digital media available. (Smartphone, laptop, desktop, tablet, etc.) If there is no webcam available on your device, you will still have access to audio and screen functions. More info here: Join a Meeting without a Teams Account
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Amphenol Sine Systems was founded in 1967 and is a subsidiary of the Amphenol Corporation and is a leader in Industrial interconnect
products. The company designs, manufacturers and supplies high-performance interconnect systems for a broad range of Industrial applications including factory automation, motion control, heavy equipment, alternative energy, rail mass transportation and advanced technology solutions for hybrid-electric vehicles. The company's headquarters are located Clinton Township, Michigan with global manufacturing, engineering, sales and service operations.
|
|
|
