New Product Introduction |
 |
|
Compact, High Density, Heavy Duty, Thermoplastic Connectors |
 |
|
Available in 20 (4+16 Mixed) position |
|

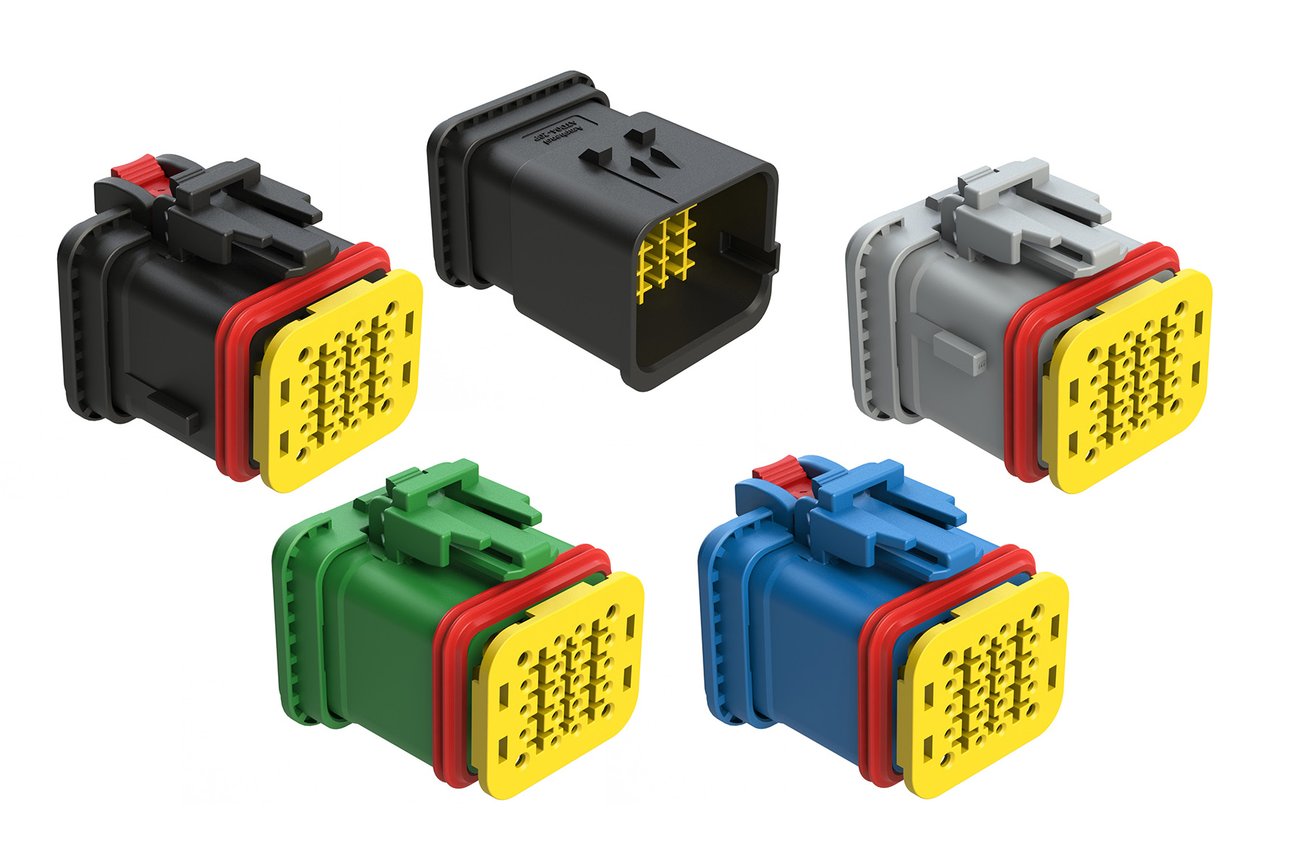

Amphenol Sine Systems ATD Series™ Connectors are a compact, high density, heavy duty, thermoplastic solution with superior environmental seals and end caps for exceptional rear seal retention.
As a hybrid system, these connectors facilitate the simultaneous transmission of power and signals within one unit. Their compact design offers increased flexibility for wire harness designers, enabling efficient space use without sacrificing functionality. |
|
|
|
These connectors have been developed to be comparable
with other similar existing products industry-wide.
(See website for cross reference.) |
|
|
|
Features
-
Hybrid System for Power and Signal applications
-
14-22AWG Range, Up to 13A, Size 16/20 contacts
-
IP67, IP68 and IP69K rated (in mated condition)
-
Thermoplastic housing with integrated latch for mating
-

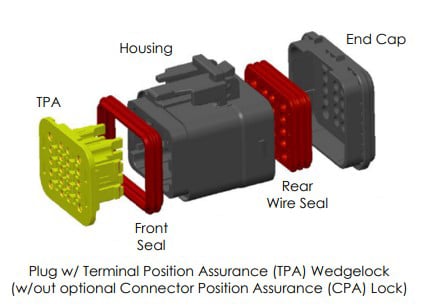

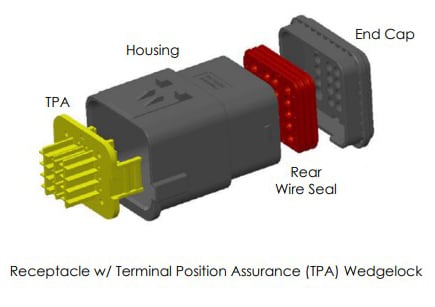

Terminal Position Assurance (TPA) Wedgelocks for plugs and receptacles (Below)
-
Optional Connector Position Assurance (CPA) Locks (Below)
|
 |
|
ATD Series™ plugs and receptacles include integrated Terminal Position Assurance (TPA) Wedgelocks. Plugs are available with an optional Connector Position Assurance (CPA) Lock, which simplifies assembly, installation, and repair by minimizing the need for additional components or specialized tools. |
 |
|
 |
