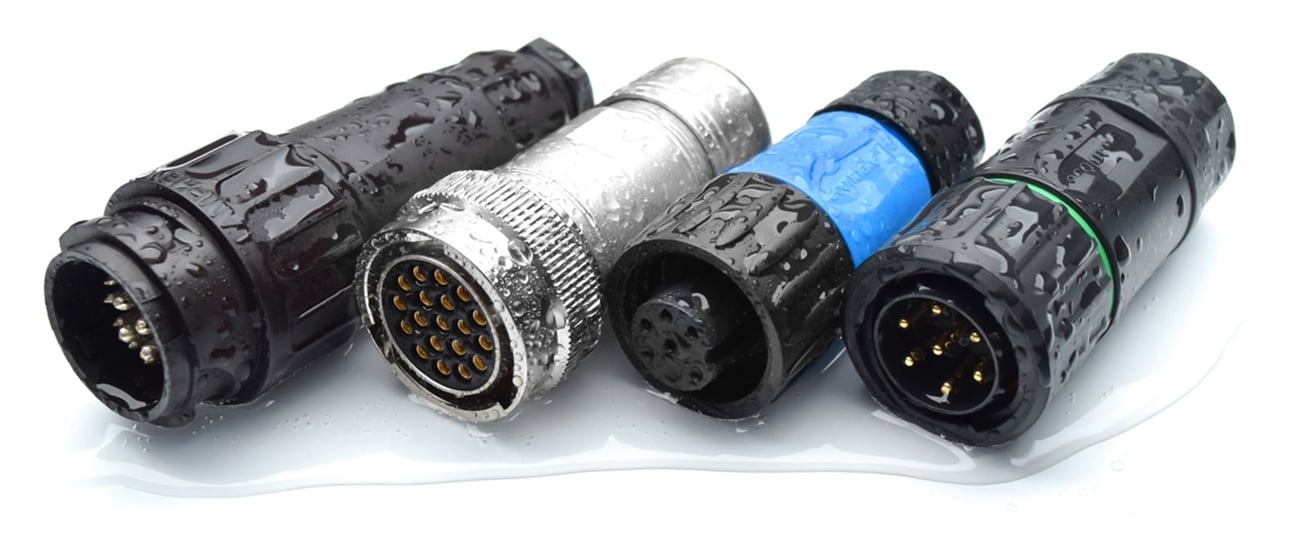

Are you looking for a robust IP65 - IP69K rated connector system to handle all your indoor or outdoor needs? Look no further... |
|
 |
 |
|
|
Maximum amperage/voltage range of 56A-300A/600V-1000V |
|
Robust, durable, plastic or metal construction with either a
circular bayonet, a quick-locking automatic, or a rapid coupling system |
|
IP65, IP67, IP68 and/or IP69K rating range
(in mated condition) |
|
Perfect for Factory Automation, Industrial, Heavy Equipment,
Heavy Duty, Transportation, and Entertainment/Lighting needs |
|
Ideal for Indoor and/or Outdoor applications |
|
|
|
|

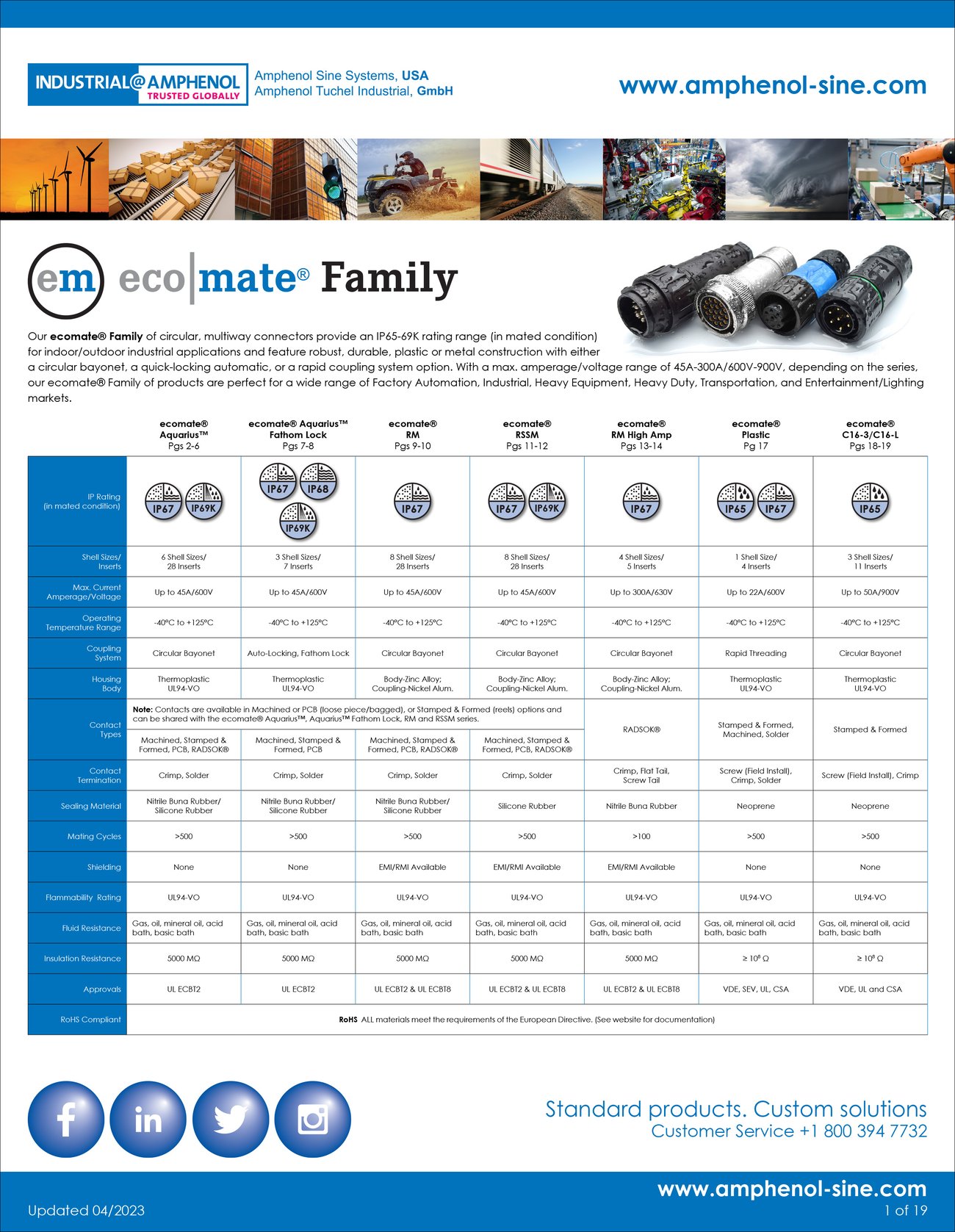

For a complete side-by-side comparison, click below to download our ecomate® Family Overview PDF or be taken to our ecomate® Family Page on our site. |
 |
| Download ecomate® Family Overview PDF |
| Go to ecomate® Family on our site |
|
|
|
Product Line Breakdown |
 |
 |
|
Circular, Plastic, Waterproof Connectors |
-
IP Rating: IP67 and IP69K Rated (in mated condition)
-
Size/Insert Arrangements: 6 Shell Sizes/ Numerous Insert Arrangements
-
Unique Feature: Mixed Power and Signal Layouts
-
Max Amp/Volt: Up to 56A/600V
-
Op Temp: -40°C to +125°C
-
Coupling System: Circular Bayonet
|
|
|
 |
|
 |
|
Circular, Plastic, Waterproof Connectors
featuring Fathom Lock Coupling System |
-
IP Rating: IP68 and IP69K Rated (in mated condition)
-
Size/Insert Arrangements: 3 Shell Sizes/ Numerous Insert Arrangements
-
Unique Feature: Auto-Locking, Fathom Lock System
-
Max Amp/Volt: Up to 45A/600V
-
Op Temp: -40°C to +125°C
-
Coupling System: Auto-Locking
|
|
|
 |
|
 |
|
Circular, Rugged Metal Connectors |
-
IP Rating: IP67 Rated (in mated condition)
-
Size/Insert Arrangements: 8 Shell Sizes/ Numerous Insert Arrangements
-
Unique Feature: Rugged Metal
-
Max Amp/Volt: Up to 45A/600V
-
Op Temp: -40°C to +125°C
-
Coupling System: Circular Bayonet
|
|
|
 |
 |
|
Circular, Rugged Metal Connectors
w Add'l Superior Seals for Increased IP69K Rating |
-
IP Rating: IP67 and IP69K Rated (in mated condition)
-
Size/Insert Arrangements: 8 Shell Sizes/ Numerous Insert Arrangements
-
Unique Feature: Rugged Metal w Add'l Superior Seals (+125°C) on the Face Side of the Connectors to Increase to IP69K Rating
-
Max Amp/Volt: Up to 45A/600V
-
Op Temp: -40°C to +125°C
-
Coupling System: Circular Bayonet
|
|
|
 |
 |
|
Circular, Rugged Metal, High Amp Connectors |
-
IP Rating: IP67 Rated (in mated condition)
-
Size/Insert Arrangements: 4 Shell Sizes/ Numerous Insert Arrangements
-
Unique Feature: Utilizes RADSOK® Contacts
-
Max Amp/Volt: Up to 300A/630V
-
Op Temp: -40°C to +125°C
-
Coupling System: Circular Bayonet
|
|
|
 |
 |
|

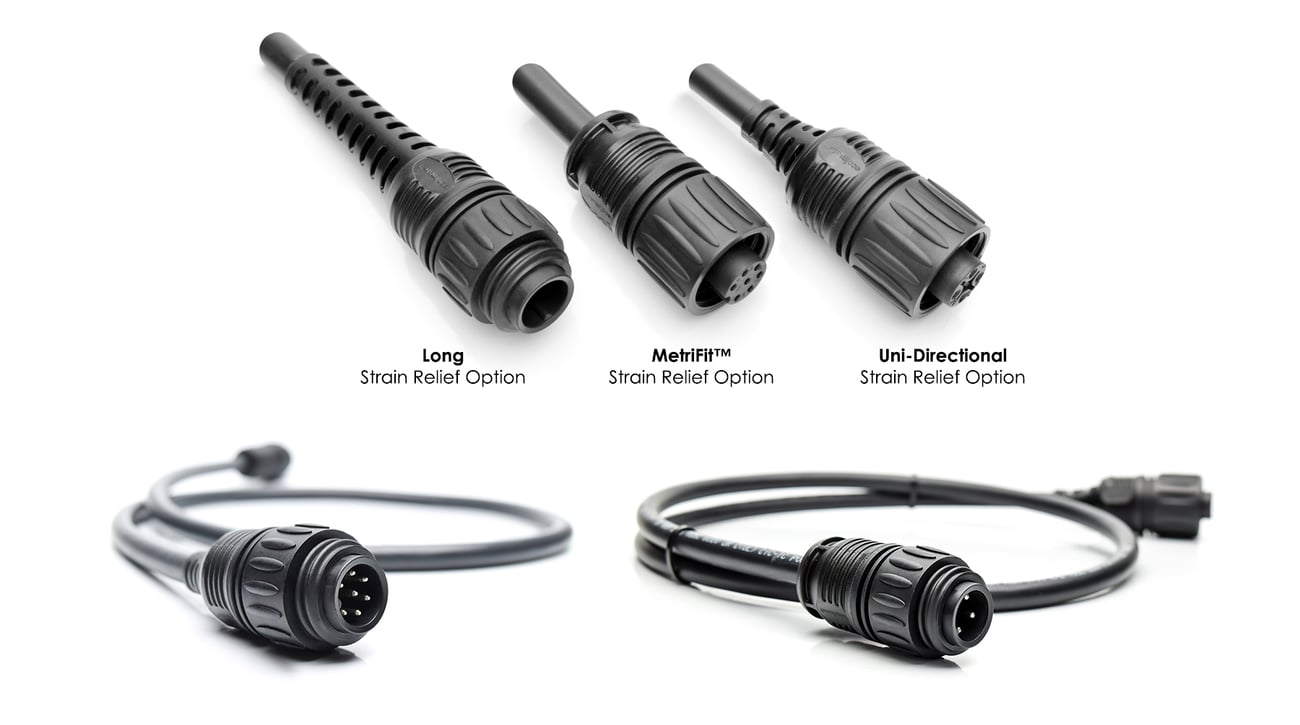

Circular, Thermoplastic Connectors
and Cable Assemblies |
-
IP Rating: IP65 and IP67 Rated (in mated condition)
-
Size/Insert Arrangements: 1 Shell Sizes/ 4 Insert Arrangements
-
Unique Feature: Circular Thermoplastic
-
Max Amp/Volt: Up to 22A @ 40°C/600V
-
Op Temp: -40°C to +125°C
-
Coupling System: Rapid Threading
-
Also available in 3 and 6 pos overmolded cable assemblies in 0.3M to 15M lengths
|
 |
|
|
 |
 |
|
Circular, Thermoplastic Connectors |
-
IP Rating: IP65 Rated (in mated condition)
-
Size/Insert Arrangements: 3 Shell Sizes/ 11 Insert Arrangements
-
Unique Feature: Circular Thermoplastic
-
Max Amp/Volt: Up to 50A @ 40°C/900V
-
Op Temp: -40°C to +125°C
-
Coupling System: Circular Bayonet
|
|
|
|
For add'l questions, feel free to email
Dominic Gwyn, ecomate® Product Manager
or call
Mobile: +1 586 205 9568 | Toll Free: +1 800 394 7732 |
 |
|
|
| Our Product Lines |
| Custom Solutions |
| Contact Us |
|
|
|
|
Virtual Handshake Request Portal |
|
Our experts. On demand. Anytime.
|
|
With a few clicks you can schedule a virtual meeting with our Team for your next project. Simply select a convenient date and time, provide some specific project details and contact info, and submit. Pending approval, a Microsoft Teams Meeting invitation will be provided to all participants.
|
| Click to schedule |
|
|
|

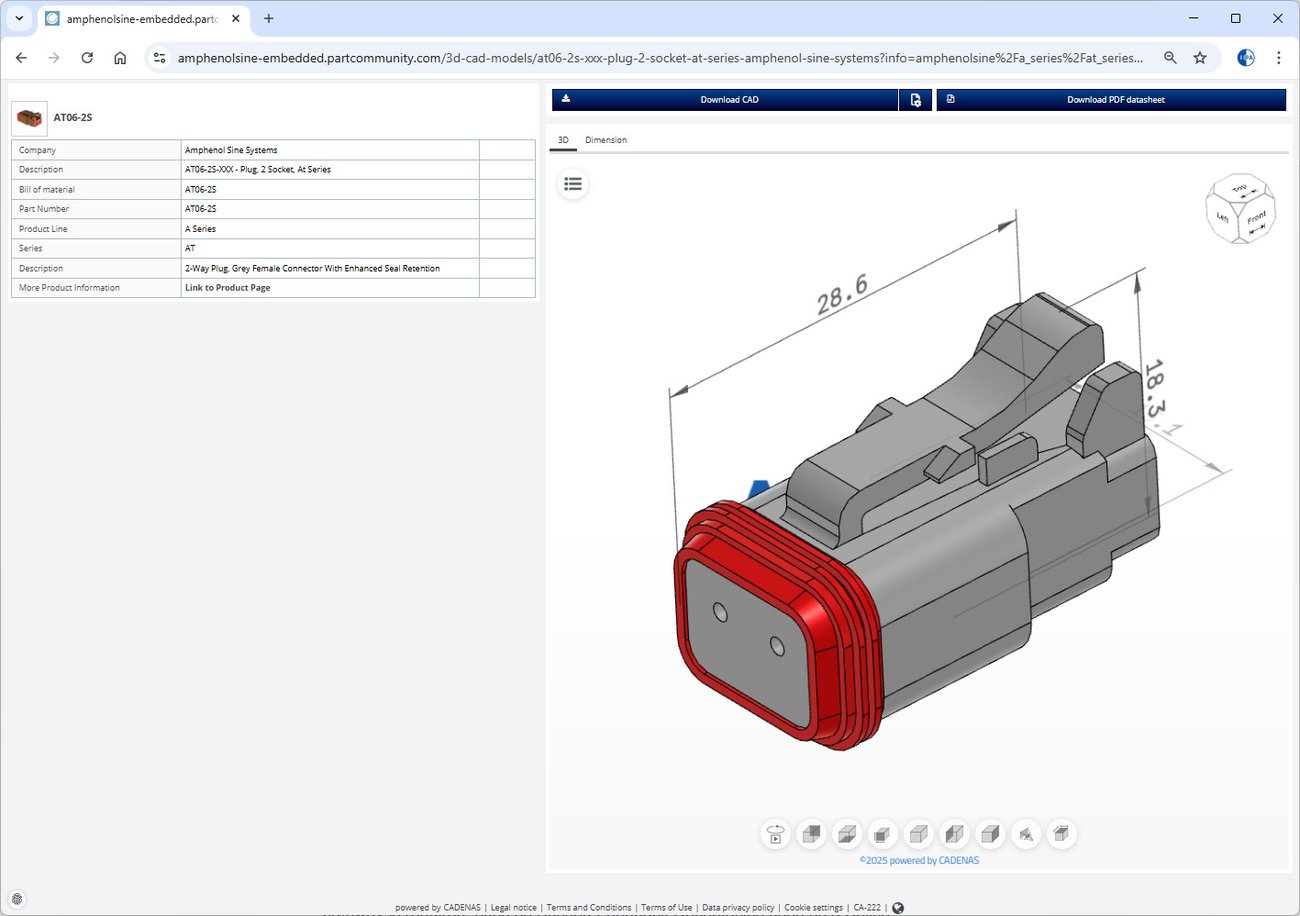

3D CAD Files At Your Fingertips |
|
