With 25 New
Products & Product Line Updates
released in 2025, here is our Top 10.
|
|
|
(In no particular order...)
|
|
|
|
|
|
|
|
|
|
|
- 13 NEW part numbers
- Available in a variety of positions/layouts
- Splitter Receptacle and Power Splitter Receptacle options
- Combines AT, ATP, ATF and ATHD Series receptacles into unique bussed blocks
- IP68 and IP69K rated
- Contact Size Range: 4, 12 and 16
- Amperage Range: 13A-300A
- Potted
- Green LED options
|
|
|
|
|

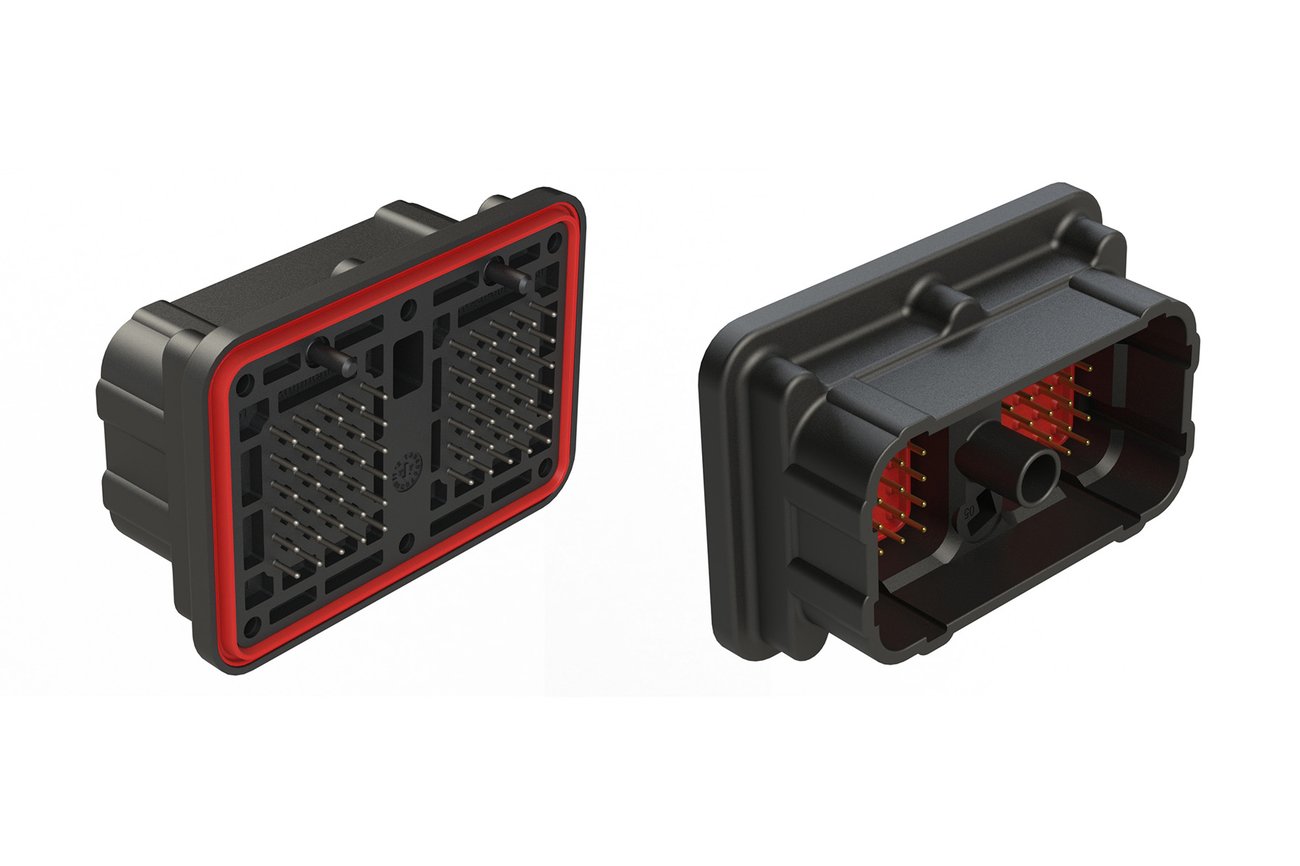

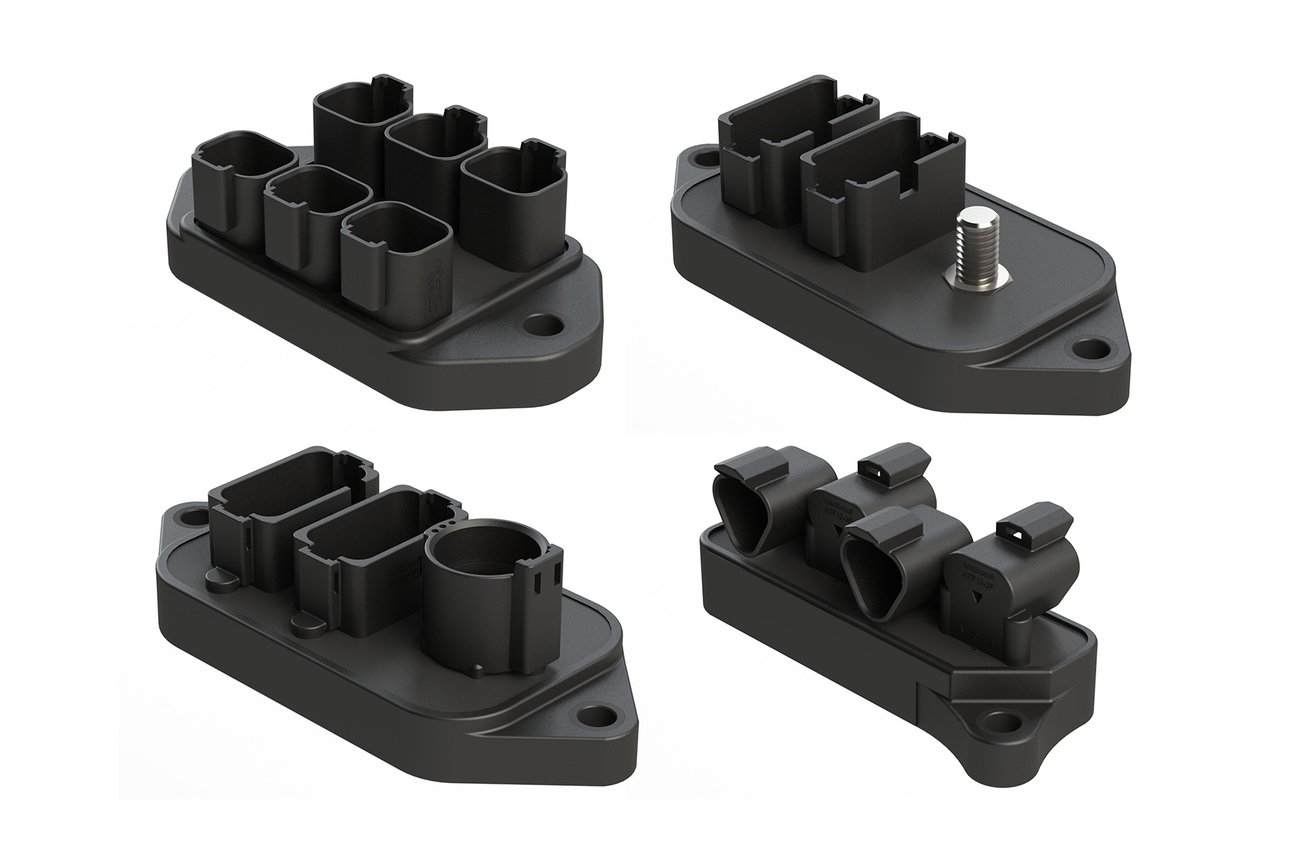

Amphenol Sine Systems’ HYPERBUSS™ PSM (Power & Signal Management)
Bussed Receptacle Blocks are environmentally sealed, multi-pin, heavy duty, thermoplastic connectors for use in applications where a common “bussed” electrical pathway is required in a condensed footprint, providing an effective way to connect multiple devices to one block. Our HYPERBUSS™ PSM Bussed Receptacle Blocks contain integrated latches to ensure proper mating with their respective AT, ATP or ATHD Series™ plugs, as well as industry standard connectors.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

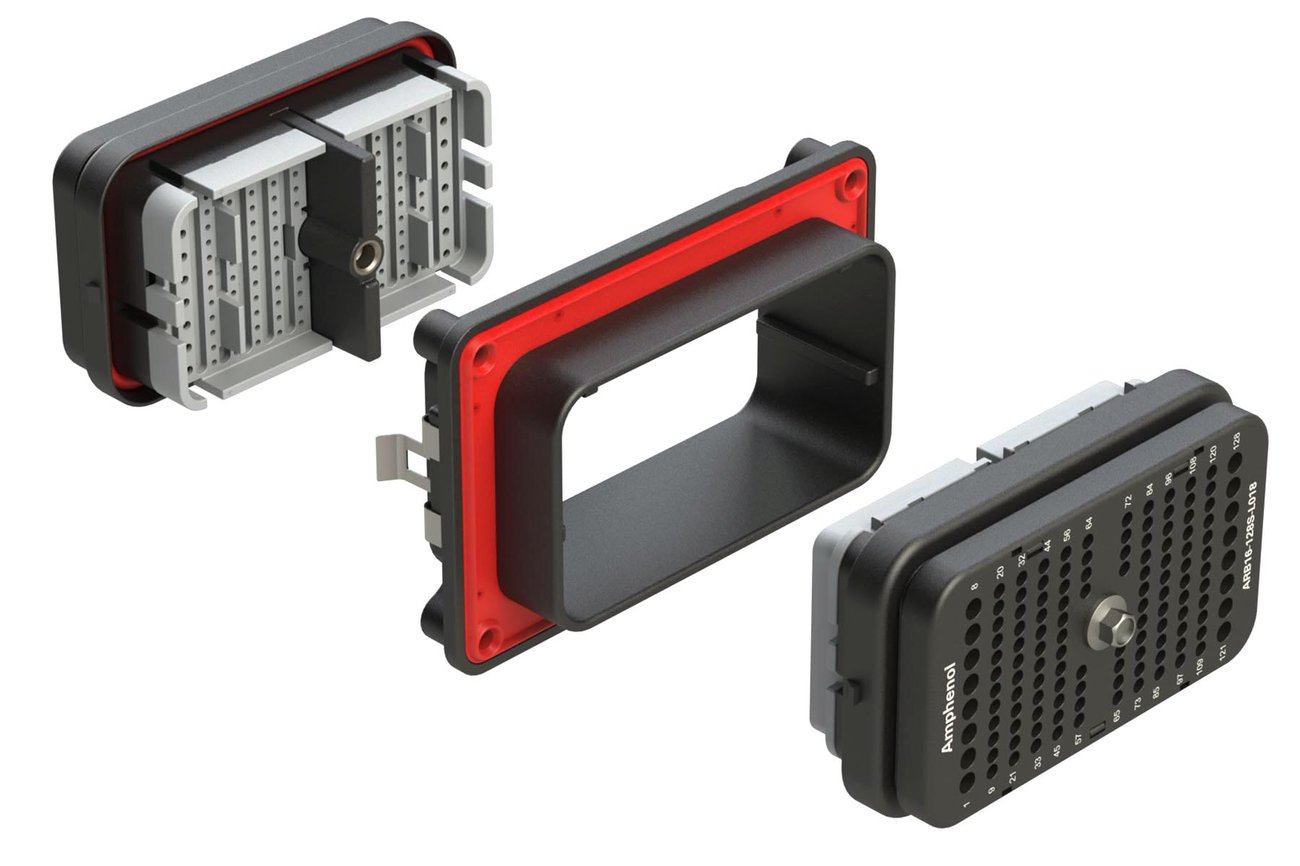

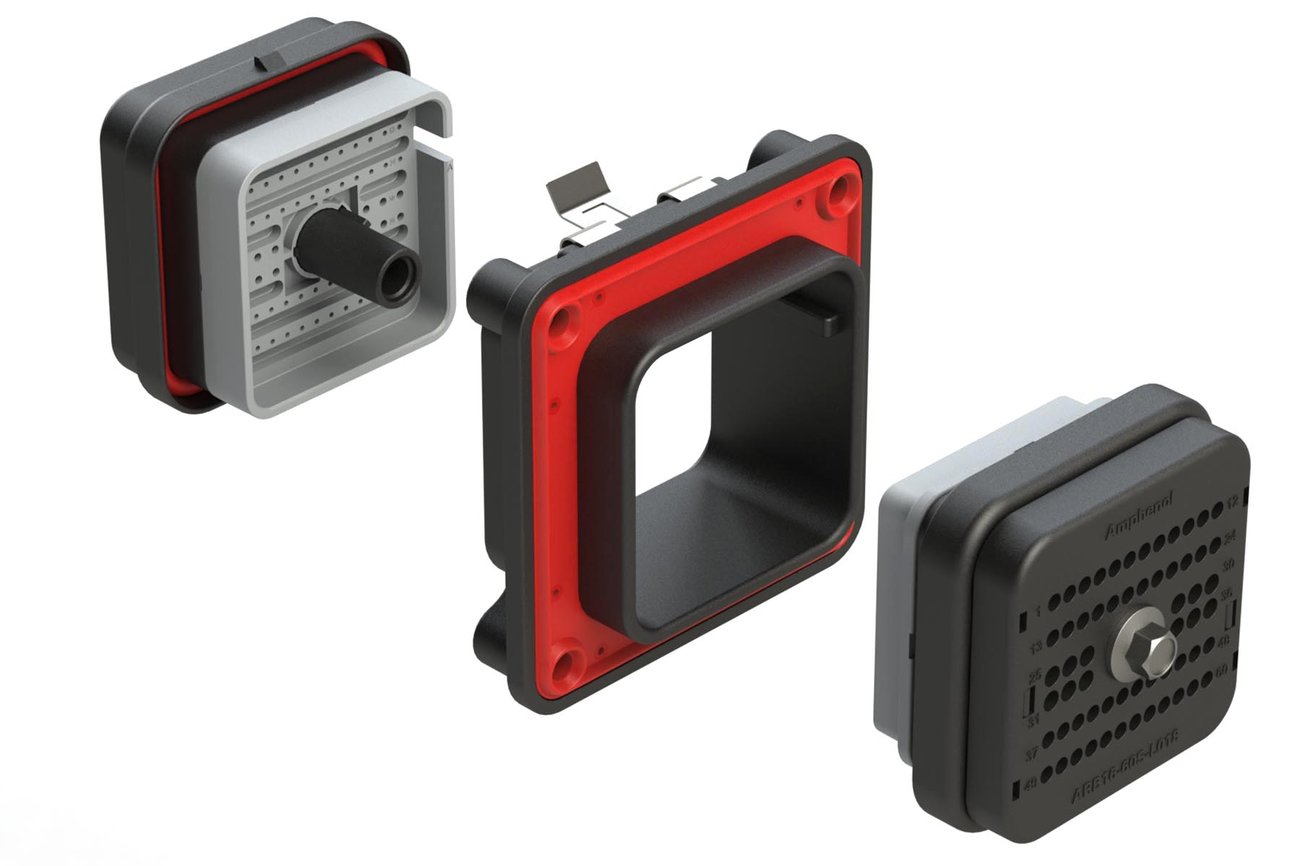

- 32 NEW part numbers
- NEW 60 Pos: Size 16/20 contacts, 13A/7.5A, 250V
- NEW 128 Pos: Size 12/16 contacts, 25A/13A, 250V
- Now available in 48, 60, 102 and 128 position
- Plugs, receptacles and wedgelocks
- Keying options
- Black Thermoplastic Body
|
|
|
|
|
|
|
|
|
|
|

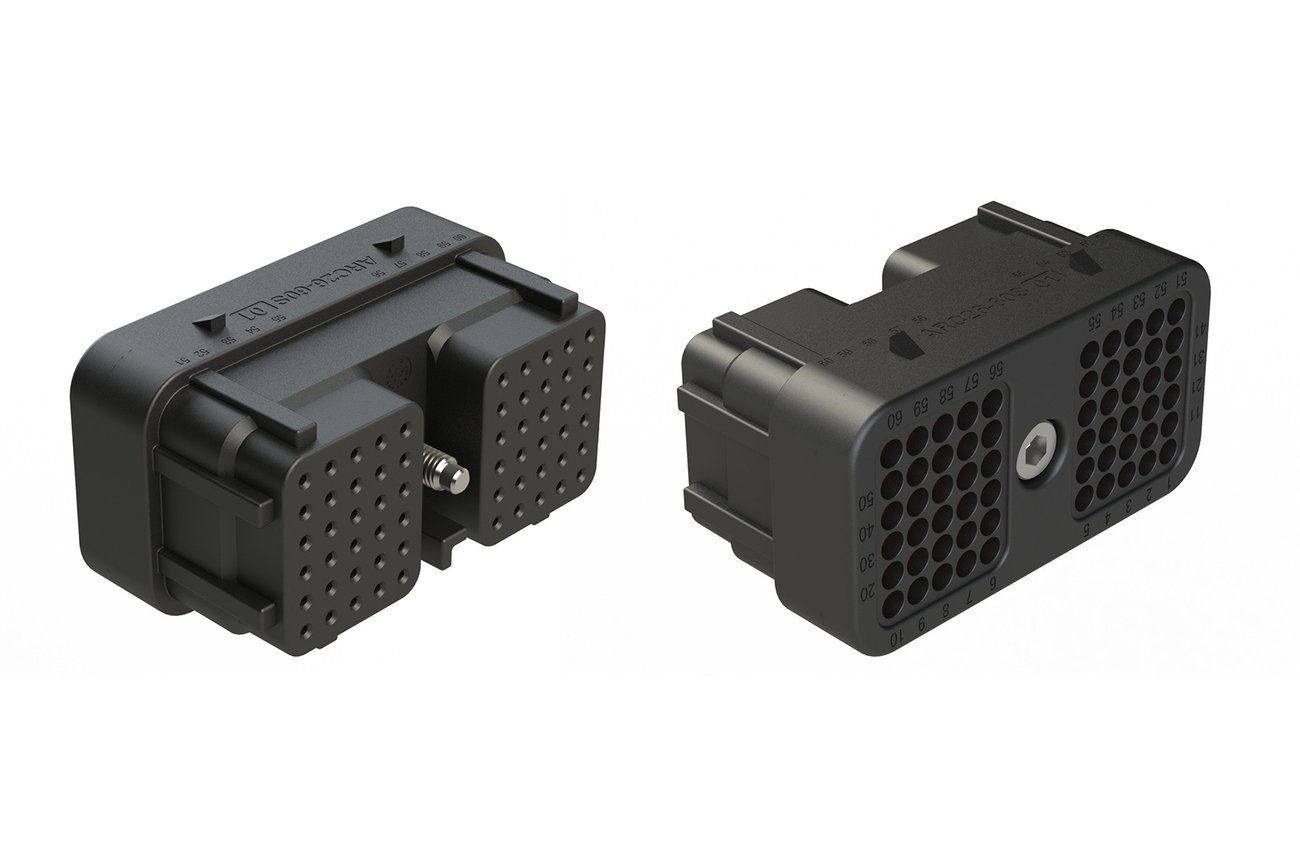

Amphenol Sine Systems’ ARB Series™ Connectors are an IP68 and IP69K rated (in mated condition), rectangular, thermoplastic, heavy-duty, environmentally-sealed, connector series where high pin-counts are required in situations with controlled and/or uncontrolled environmental conditions such as bulkhead applications. The interface flange with receptacle retaining clip, jackscrew (plug), and threaded insert (receptacle) are all utilized to ensure a secure mated assembly. Our ARB Series™ Connectors have been developed to be comparable with other existing standard products industry-wide.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

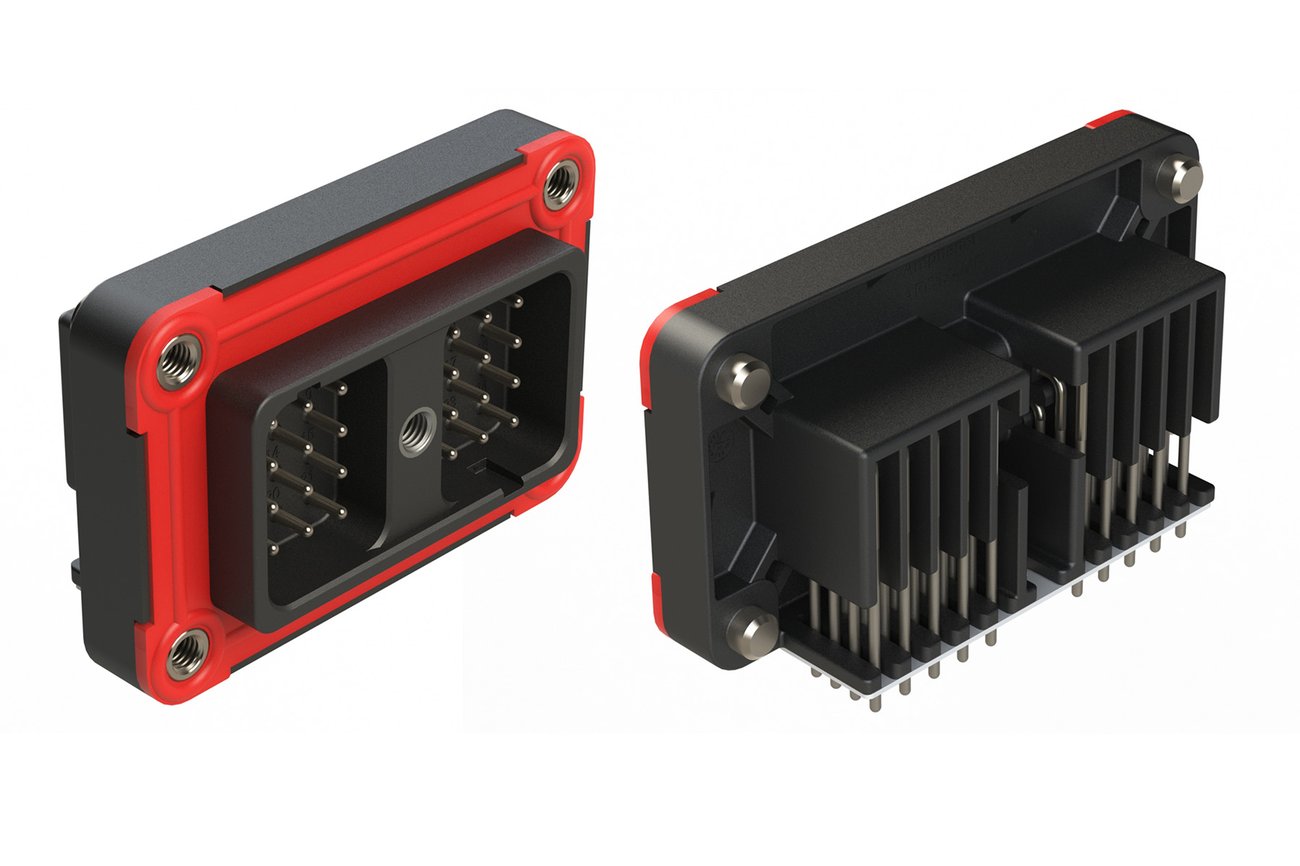

Now available in 24 & 40 Pos PCB option- 16 NEW part numbers
- Size 16 contacts, 13A, 250V
- Flanged
- 90 Right Angle PCB Pin Orientation
- Keying Options
- Black Thermoplastic Body
|
|
|
|
|
|
|
|
|
|
|
|
|
Now available in 50 Pos PCB Straight option- 10 NEW part numbers
- Size 20contacts, 7.5A, 250V
- Self-Threading w Threaded insert
- Keying Options 01-10
- Black Thermoplastic Body
|
|
|
|
|
|
|
|
|
|
|
|
|

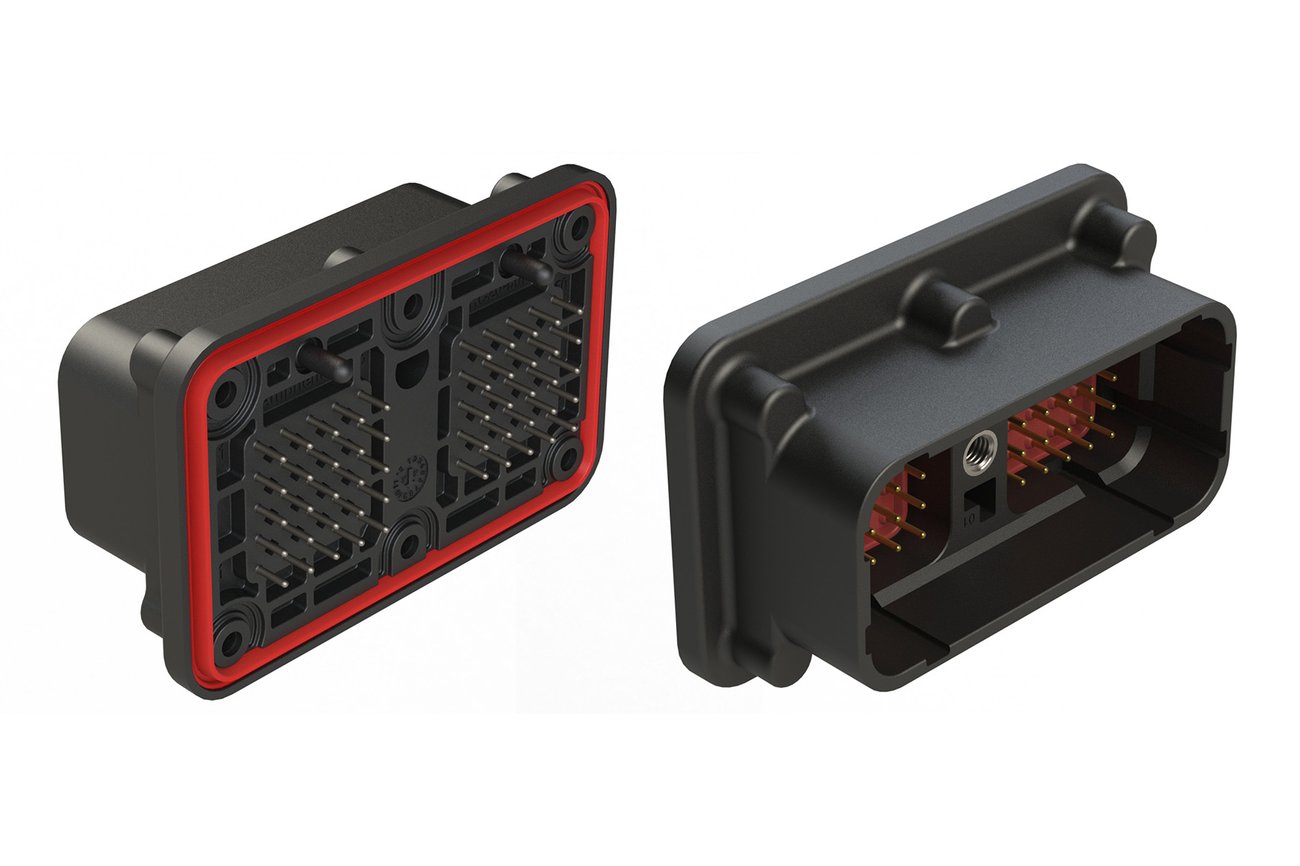

Now available in 60 Pos Plug (5 NEW part numbers)Now available in 60 Pos PCB Straight Receptacle option (5 NEW part numbers)- 10 NEW part numbers
- Size 20 contacts, 7.5A, 250V
- Threaded Inserts w Jackscrews
- Keying Options
- Black Thermoplastic Body
|
|
|
|
|
|
|
| 60 Position PCB Straight Receptacle
|
|
|
|
|
|
|
|
|
|
|
|
|

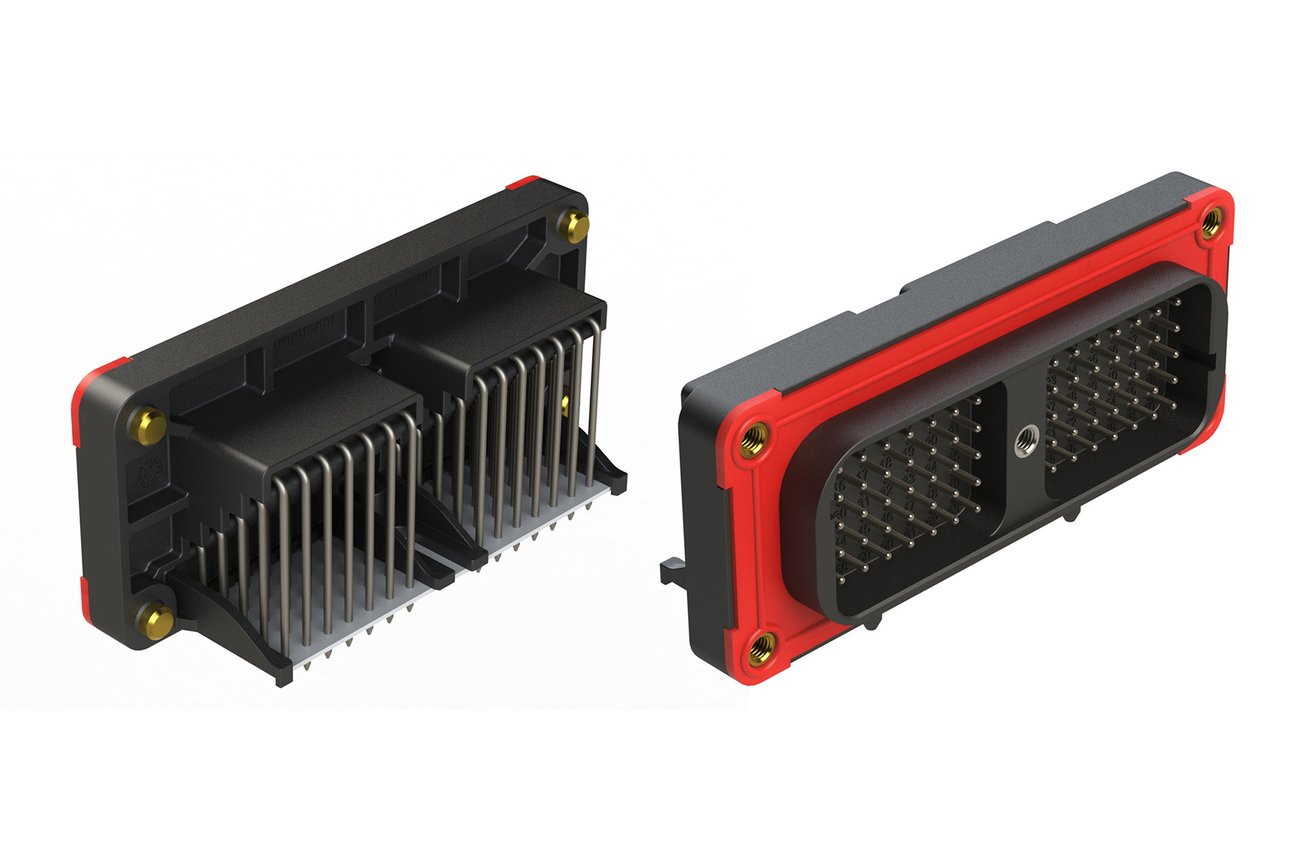

Now available in 70 Pos PCB Right Angle option- 10 NEW part numbers
- Size 16 contacts, 13A, 250V
- Selective Tin Plating and Pin Spacer
- Threaded insert
- Keying Options A-D
- Black Thermoplastic Body
|
|
|
|
|
Amphenol Sine Systems ARC Series™ Connectors are an IP68 and IP69K rated (in mated condition),
rugged, heavy-duty, environmentally-sealed, thermoplastic, rectangular connector series where high pin-counts are required in situations with controlled and/or uncontrolled environmental conditions. Available in standard Plugs and Receptacles, PCB Receptacle BoardLock™ and Flanged Receptacle PanelMate™ options.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Now available in 14-07 (3+4) Mixed Position- 16 NEW part numbers
- Size 12/16 contacts, 500V
- Available in Plugs, Square Flange/In-Line/Jam Nut Receptacles
|
|
|
|
|
Now available in 16-13 (3+10) Mixed Position- 16 NEW part numbers
- Size 12/20 contacts, 500V
- Available in Plugs, Square Flange/In-Line/Jam Nut Receptacles
|
|
|
|
|
Amphenol Sine Systems’ ecomate® Aquarius™ Series of waterproof connectors
provide an IP67 and IP69K rating (in mated condition) for industrial applications, and incorporates the latest technology in a high-impact, thermoplastic design, offering advantages of lightweight, lower-cost, sealed connector systems on the market today. ecomate® Aquarius™ connectors are ideal for Indoor/Outdoor applications and the MIL-DTL-26482 based design provides a quick, reliable, 1/3 turn bayonet coupling.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Now available in 14-07 (3+4) Mixed Position- 16 NEW part numbers
- Size 12/16 contacts, 500V
- Available in Plugs, Square Flange/In-Line/Jam Nut Receptacles
|
|
|
|
|
Now available in 16-13 (3+10) Mixed Position- 16 NEW part numbers
- Size 12/20 contacts, 500V
- Available in Plugs, Square Flange/In-Line/Jam Nut Receptacles
|
|
|
|
|
|
|
|
|
|
|
|
|
Now available in 14-03 Position- 22 NEW part numbers
- Size 8 (3.6mm) contacts, 45A Max, 600V
- Available in Plugs, Square Flange & Jam Nut Receptacles
|
|
|
|
|
|
|
Amphenol Sine Systems’ ecomate® RM (Rugged Metal) Series of circular, metal
connectors provide an IP67 rating (in mated condition) for industrial applications, all in a sealed connector system. With a circular bayonet coupling system and a maximum current rating of 45A/600V, the ecomate® RM (Rugged Metal) Series is perfect for Indoor/Outdoor applications in Factory Automation, Industrial, Heavy Equipment, Heavy Duty, Transportation, and Entertainment/Lighting markets. Design is based on MILDTL-26482 specifications. All ecomate® RM products are compatible with other industry standard mating connectors.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

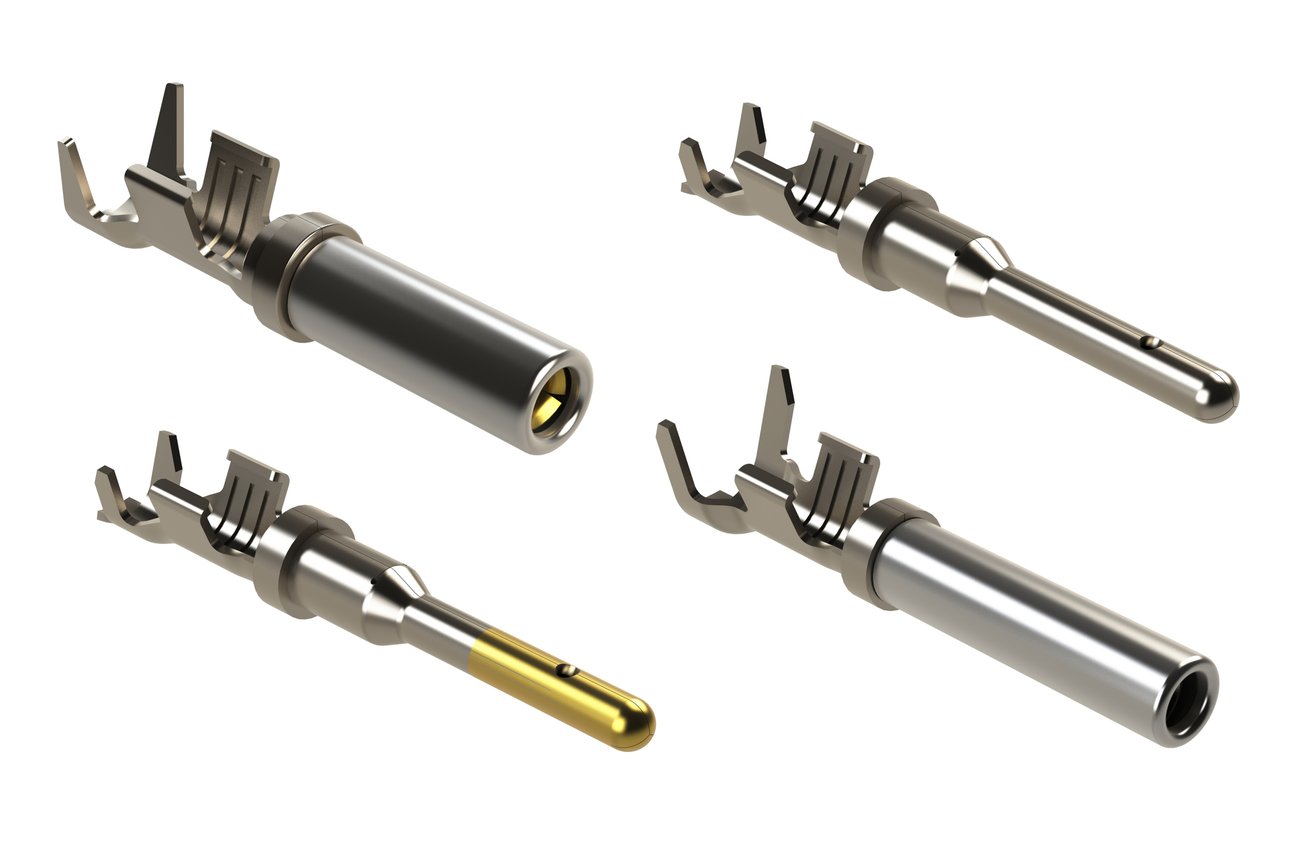

Now available in Stamped & Formed Loose Piece- 20 NEW part numbers
- Available in Size 12, 16 & 20
contacts
- 13A, 10-22AWG Range
- 50 Count Bags
|
|
|
|
|
|
|
|
|
|
|
|
|

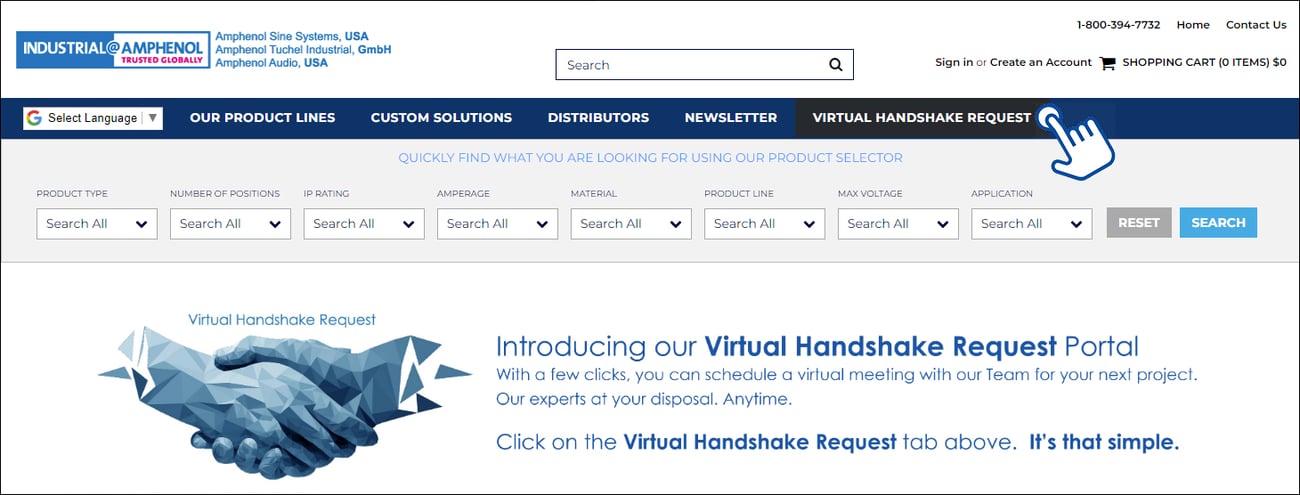

Virtual Handshake Request Portal
|
|
|
Our experts at your disposal. Anytime.
|
|
|
|
|
|
|
With a few clicks you can schedule a virtual meeting with our Team for your next project. Simply select a convenient date and time, provide some specific project details and contact info, and submit. Once your request has been reviewed, Amphenol Sine will make sure our Team is available to advance your project, and make sure you are aware of
all our unique capabilities. Pending approval, a Microsoft Teams Meeting invitation will be provided to all participants.
|
|
|
|
|
NOTE: Even if you don't have a Microsoft® Teams account, you have nothing to worry about. Our Team member will initiate the chat/video conference from our end and provide you a link via email or text. Meetings can take place on any digital media available. (Smartphone, laptop, desktop, tablet, etc.) If there is no webcam available on your device, you will still have access to audio and screen functions.
|
|
|
|
|
|
|
|
|

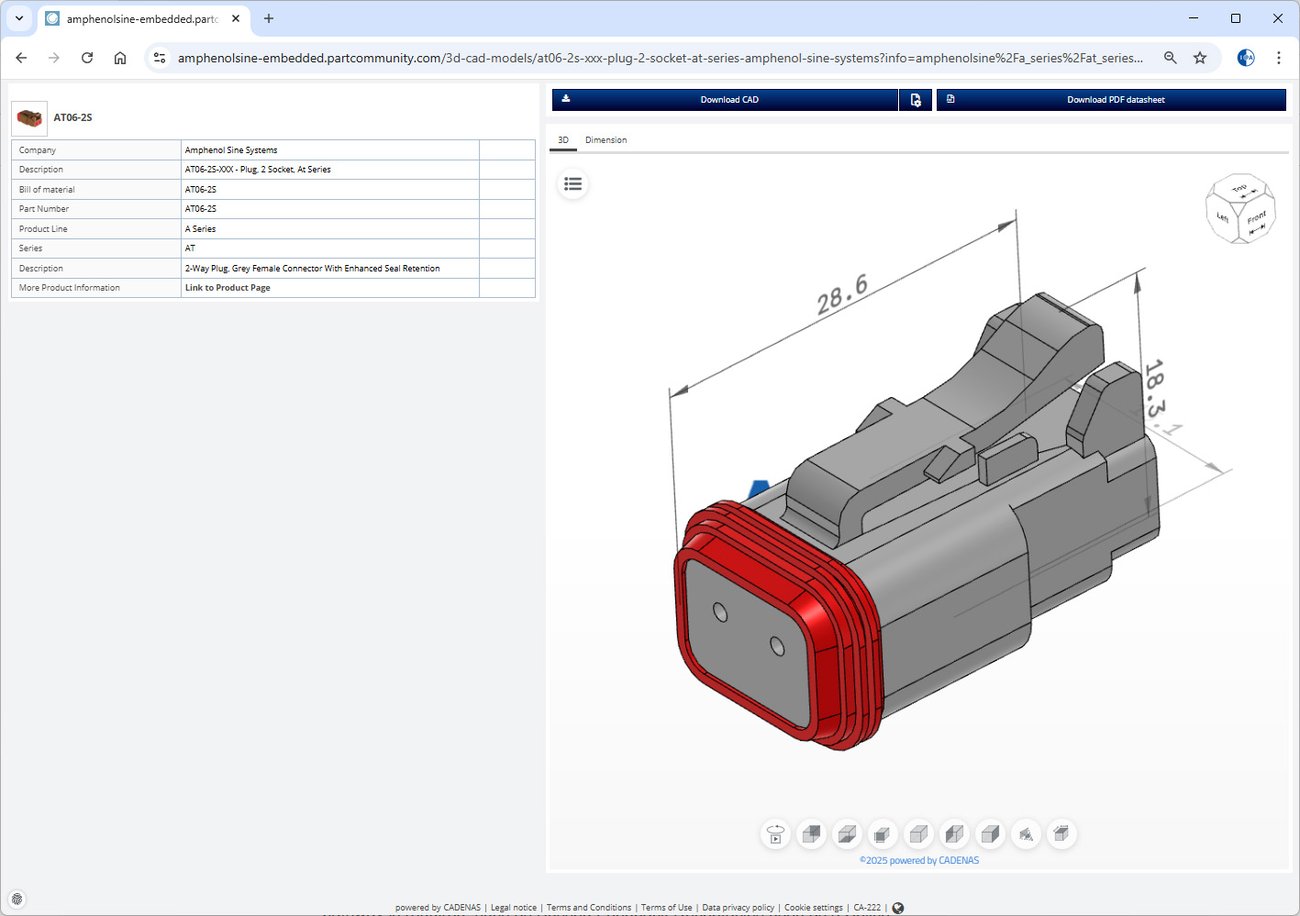

3D CAD Files At Your Fingertips
|
|
|

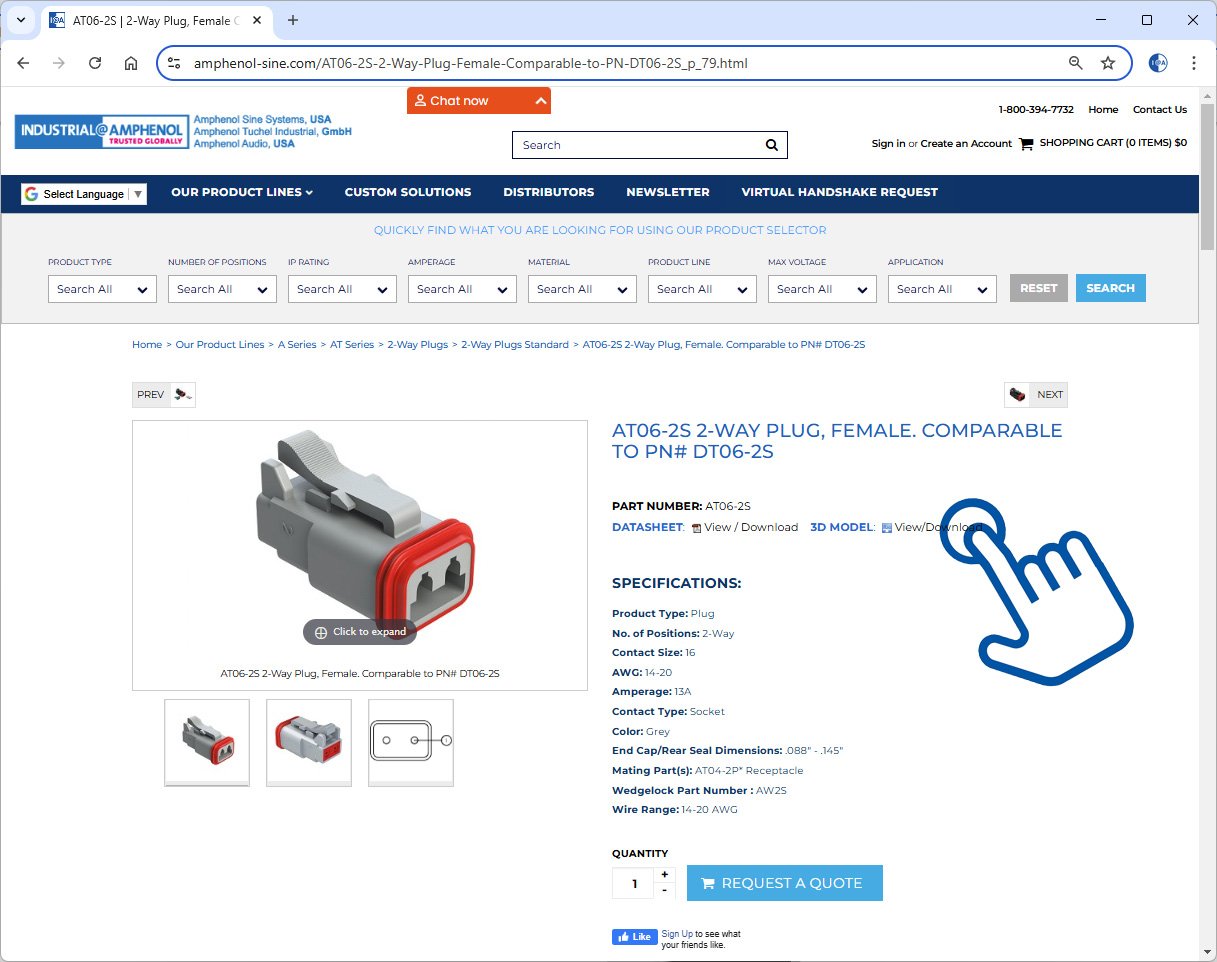

Amphenol Sine Systems offers our customers 24/7 access to 3D CAD models
