July 2025 Newsletter
 ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌ ‌
Our Newsletter highlighting New Product Introductions, Product Updates, Company News and more.
Amphenol Sine Systems Home

July 2025


New Insert Arrangements for

With the ever-growing need for more insert arrangements to meet customer needs, Amphenol Sine Systems has released more options for our DuraMate™ AHDP and DuraMate™ AHDM product lines.
See below for new arrangements and their respective faceviews.

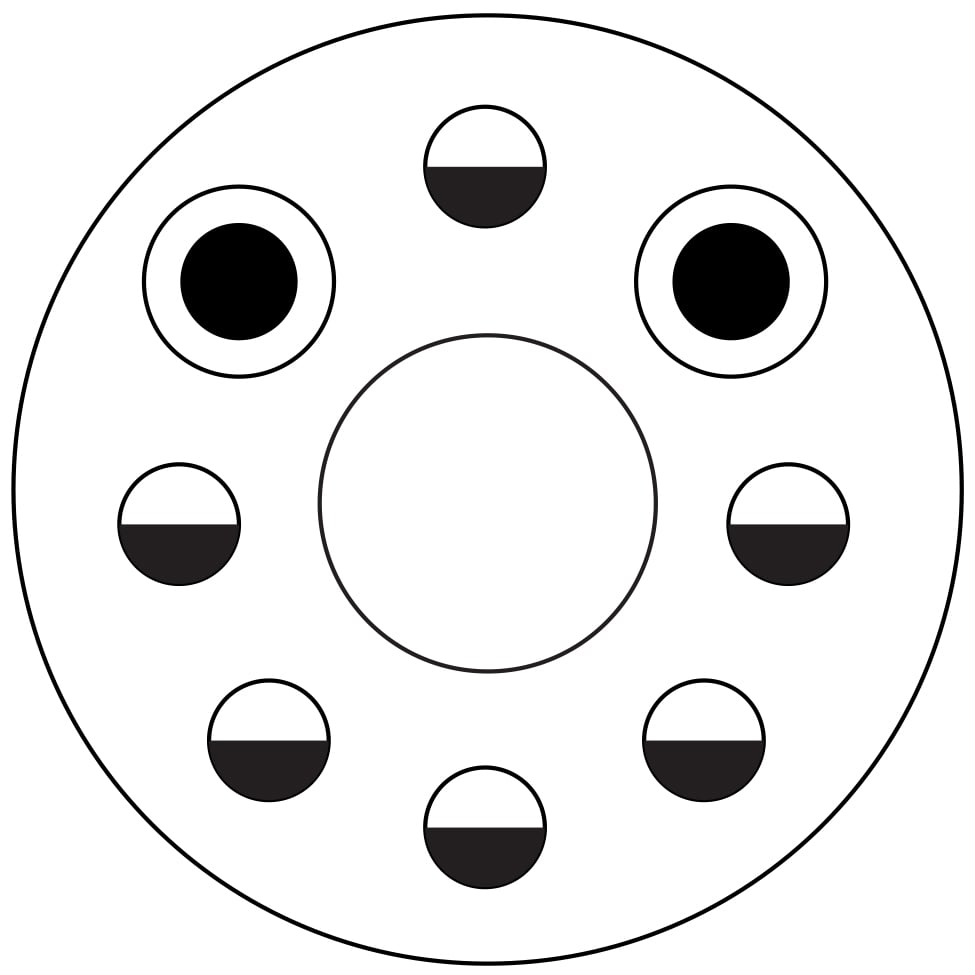

Shell Size 24-09 Position (32 New Part Numbers)

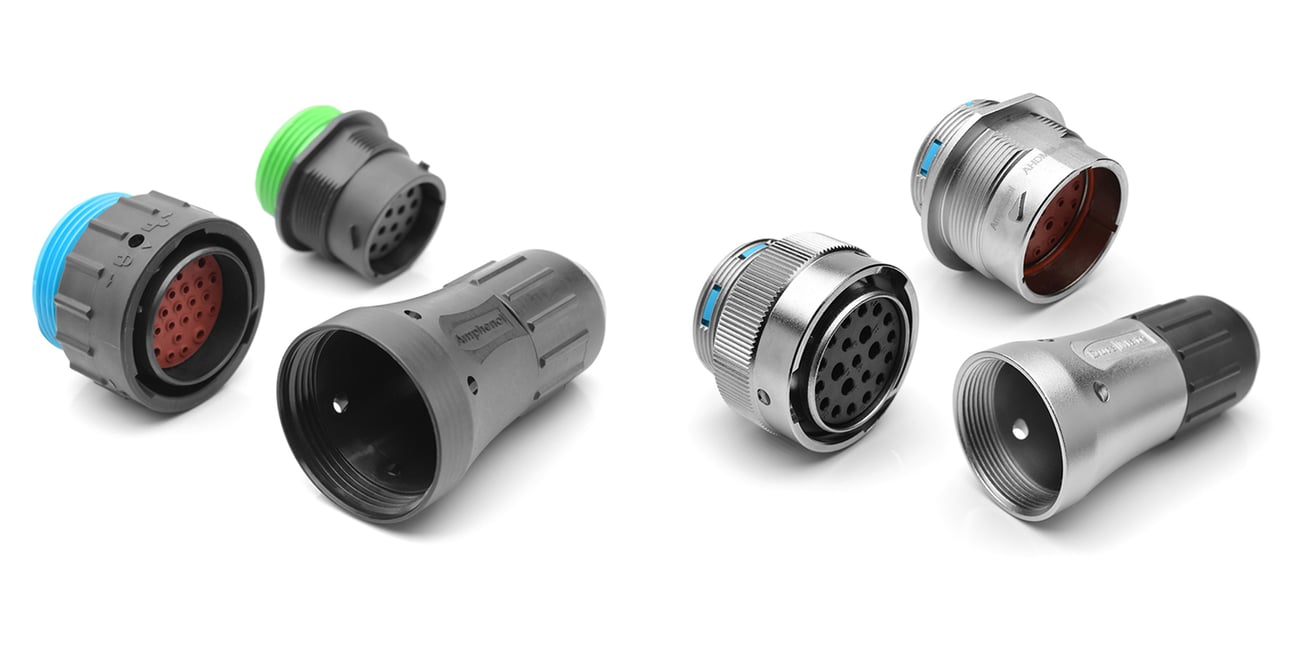

AHDM (Metal) and AHDP (Plastic)
Contacts:
  • 1 x Size 4 (100A)
  • 2 x Size 8 (60A)
  • 6 x Size 12 (25A)
Available in:
  • Plug
  • Receptacle
  • Panel Mount Receptacle
  • Receptacle Kit
  • -059 Cable Clamp Backshells

Available in a wide variety of thread adapter options:
  • Smooth Ring Adapters (SRA) are designed for use without backshells for a smaller footprint
  • Small Thread Adapters (STA) provide an enhanced “step down” threading for use with screw-on or clamshell backshells
  • Wide Thread Adapters (WTA) provide an enhanced threading for use with our wide variety of screw-on or clamshell backshells
  • Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells

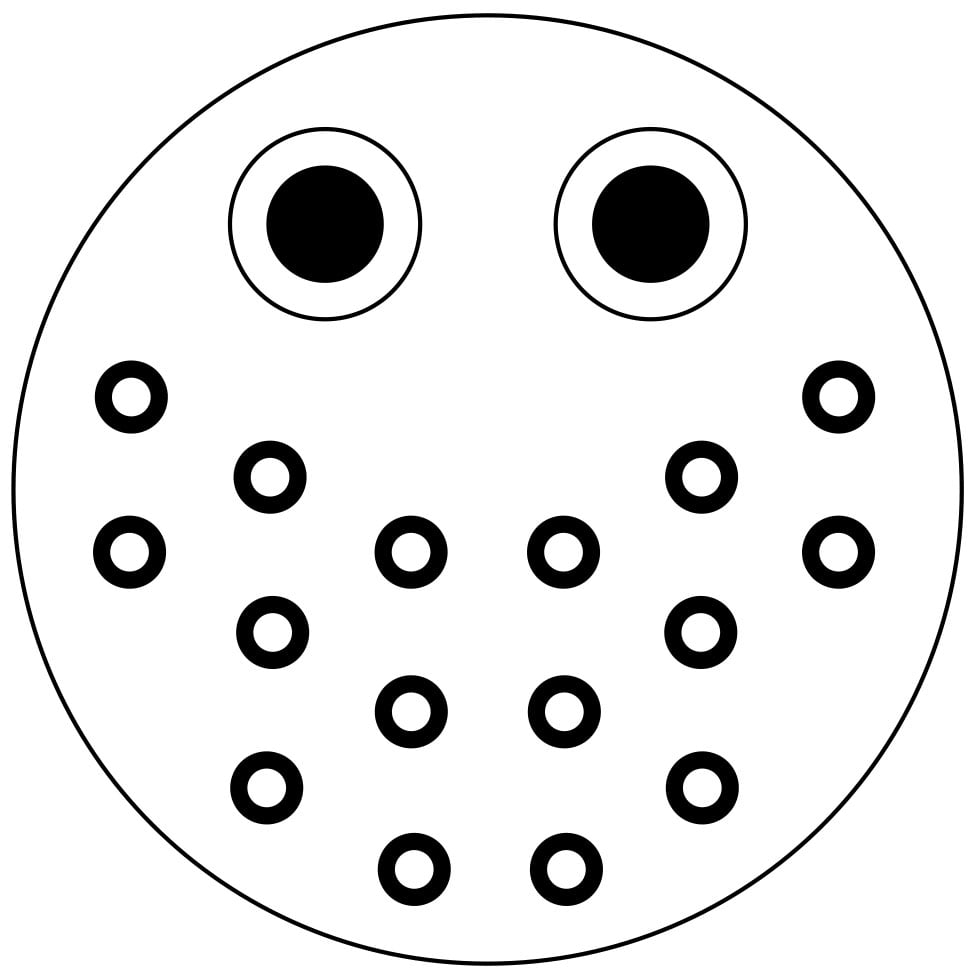

Shell Size 24-18 Position, -CL82 Alternative Layout (3 New Part Numbers)
AHDP (Plastic Only)
Contacts:
  • 2 x Size 8 (60A)
  • 16 x Size 20 (7.5A)
Available in:
  • Plug
  • Receptacle
  • Panel Mount Receptacle

Available in the following thread adapter option:
  • Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells

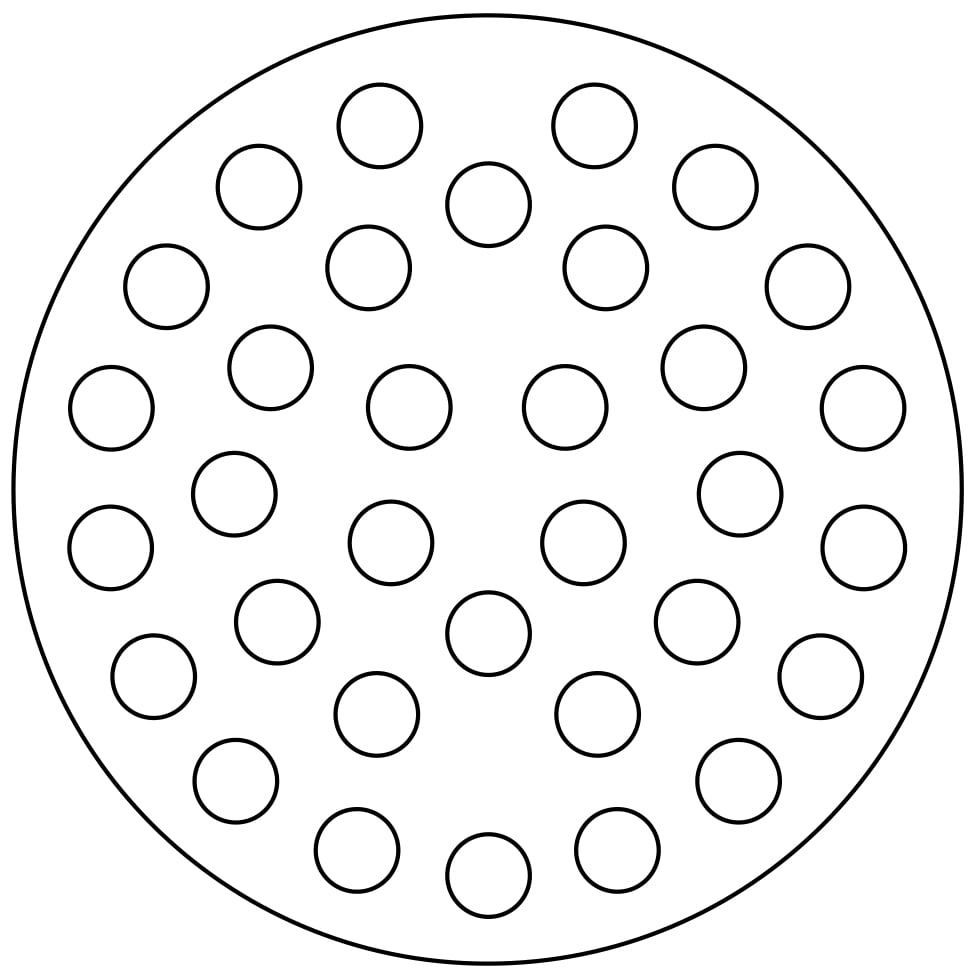

Shell Size 24-33 Position (32 New Part Numbers)
AHDP (Plastic) and AHDM (Metal)
Contacts:
  • 33 x Size 20 (7.5A)
Available in:
  • Plug
  • Plug Kit
  • Receptacle
  • Panel Mount Receptacle
  • -059 Cable Clamp Backshells

Available in a wide variety of thread adapter options:
  • Smooth Ring Adapters (SRA) are designed for use without backshells for a smaller footprint
  • Small Thread Adapters (STA) provide an enhanced “step down” threading for use with screw-on or clamshell backshells
  • Wide Thread Adapters (WTA) provide an enhanced threading for use with our wide variety of screw-on or clamshell backshells
  • Backshell Ring Adapters (BRA) allow for use with other compatible industry-standard snap-on backshells

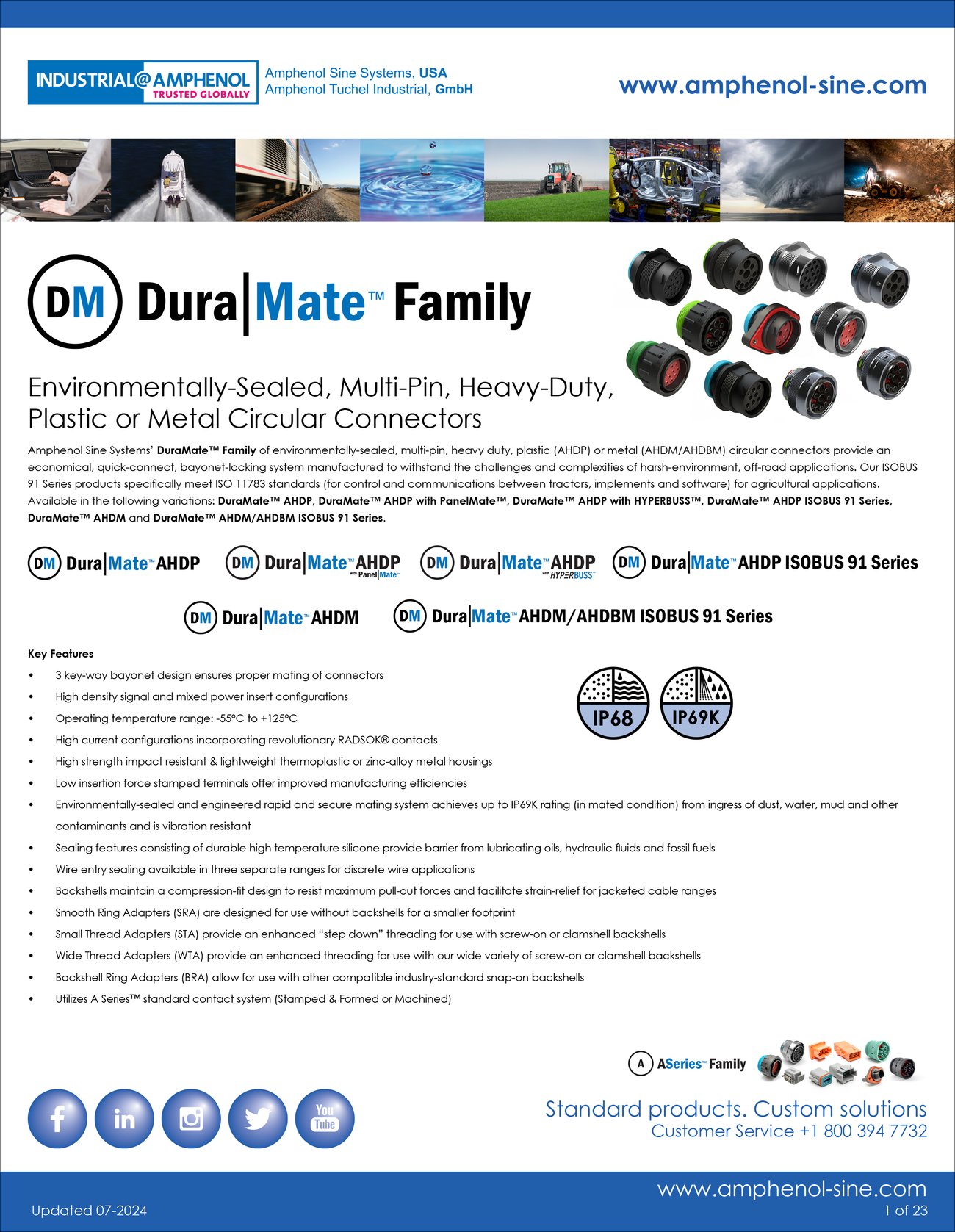

Click Image Above To Download Our Literature

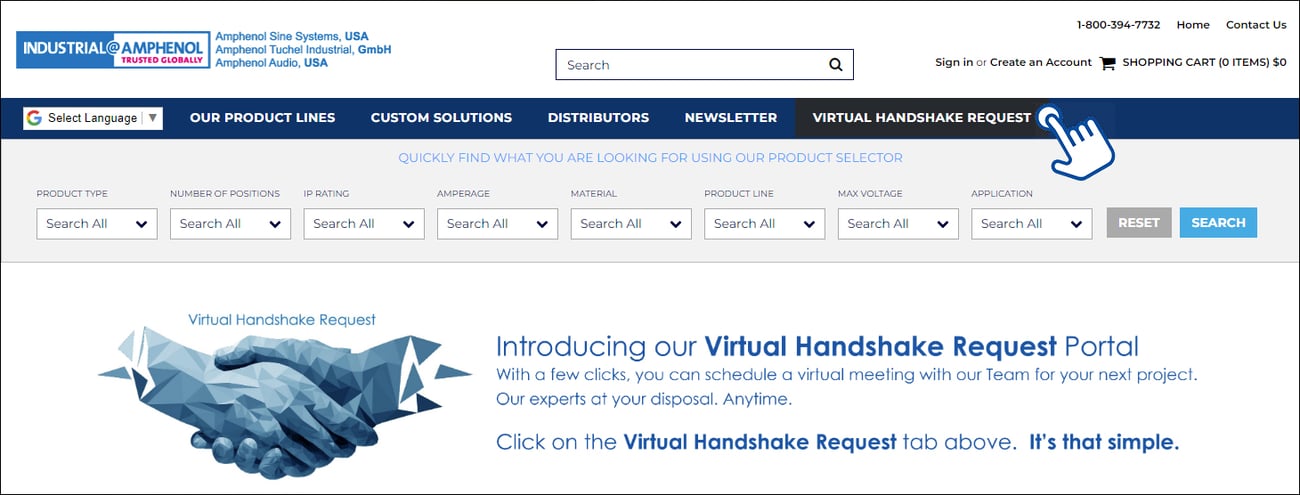

Virtual Handshake Request Portal
    Our experts at your disposal.  Anytime.

      With a few clicks you can schedule a virtual meeting with our Team for your next project.  Simply select a convenient date and time, provide some specific project details and contact info, and submit. Once your request has been reviewed, Amphenol Sine will make sure our Team is available to advance your project, and make sure you are aware of all our unique capabilities. Pending approval, a Microsoft Teams Meeting invitation will be provided to all participants.


      NOTE: Even if you don't have a Microsoft® Teams account, you have nothing to worry about.  Our Team member will initiate the chat/video conference from our end and provide you a link via email or text.  Meetings can take place on any digital media available. (Smartphone, laptop, desktop, tablet, etc.)  If there is no webcam available on your device, you will still have access to audio and screen functions.

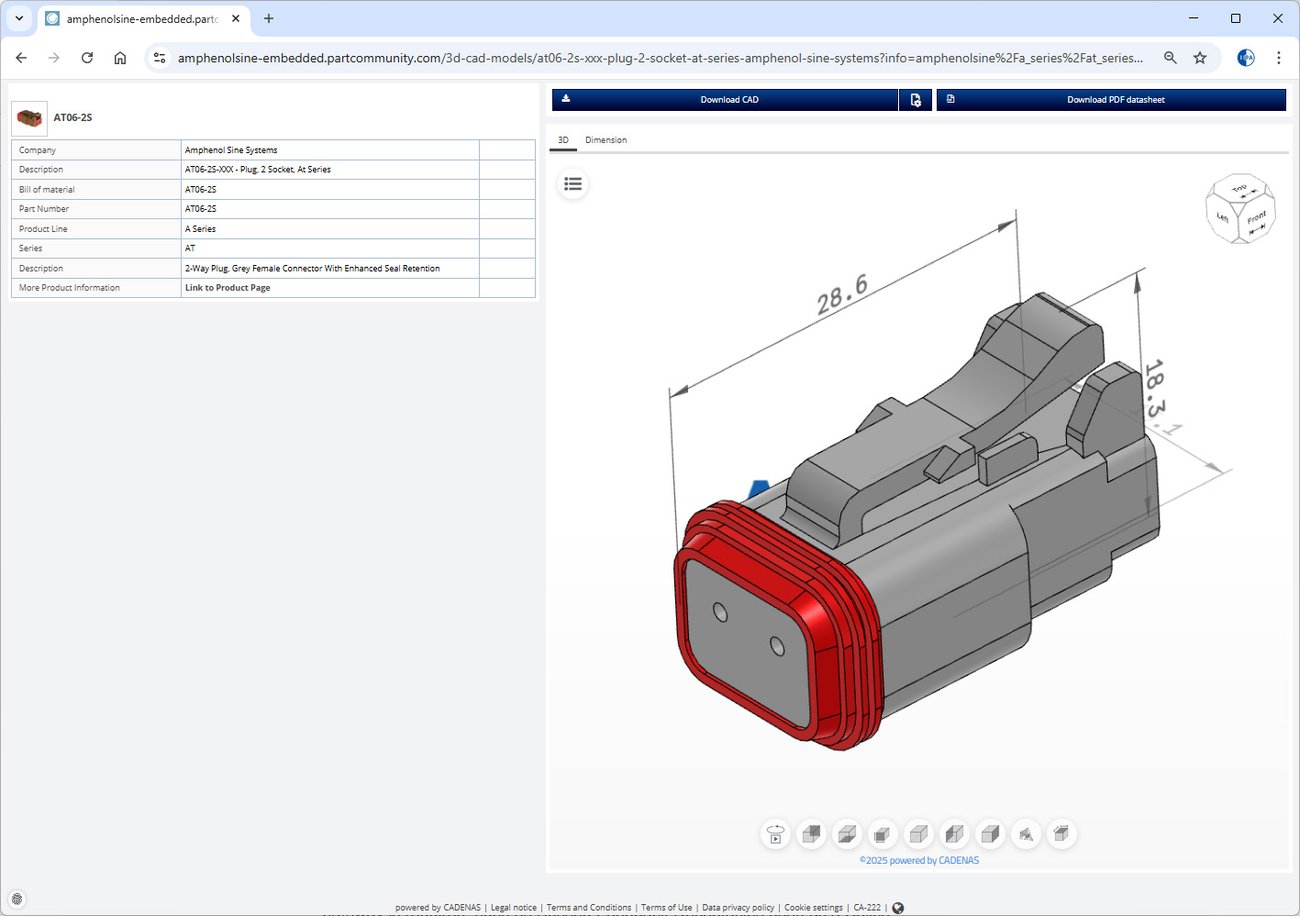

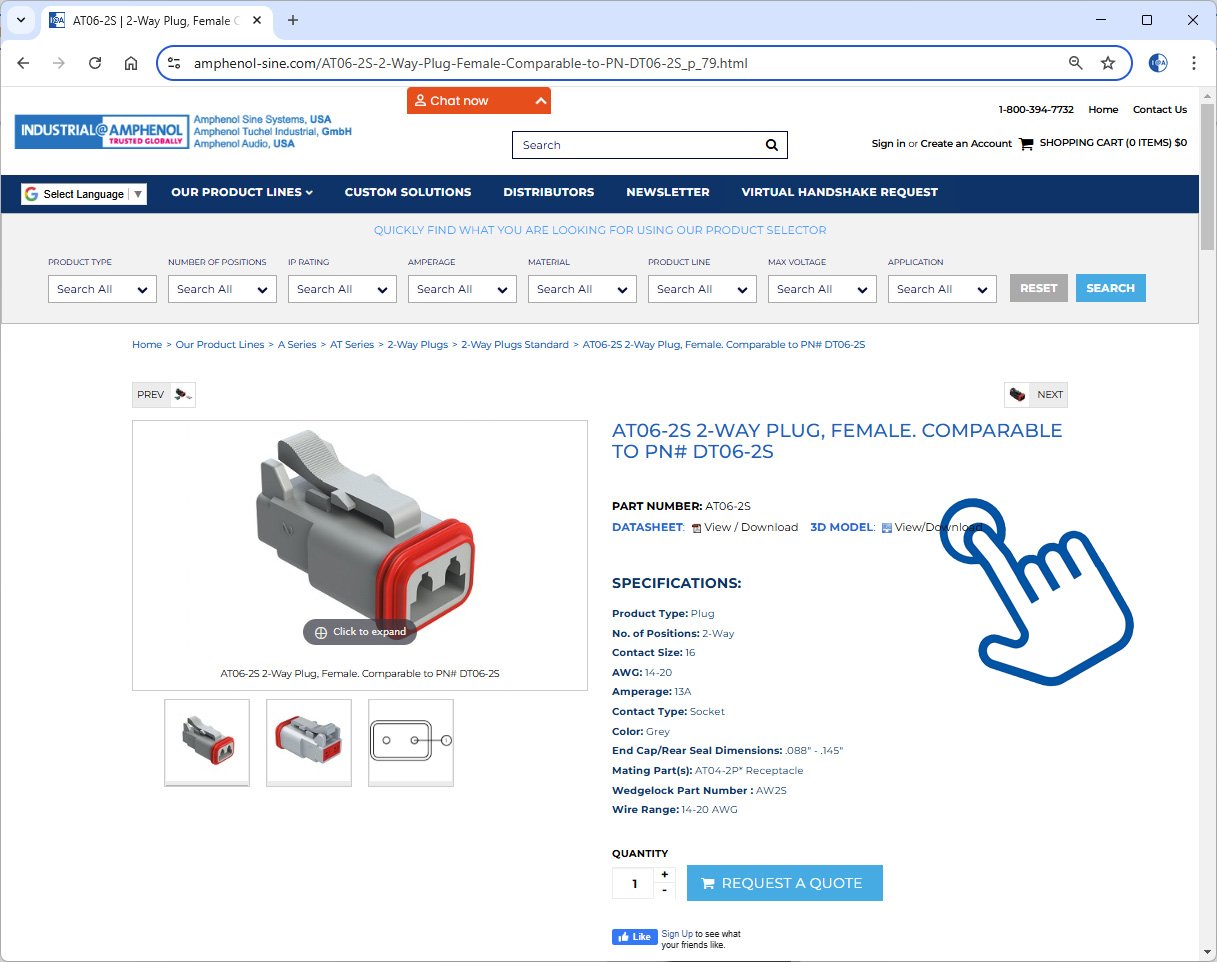

      3D CAD Files At Your Fingertips
        Amphenol Sine Systems offers our customers 24/7 access to 3D CAD models
        and data for our ever-growing product lines. See individual part numbers for access.

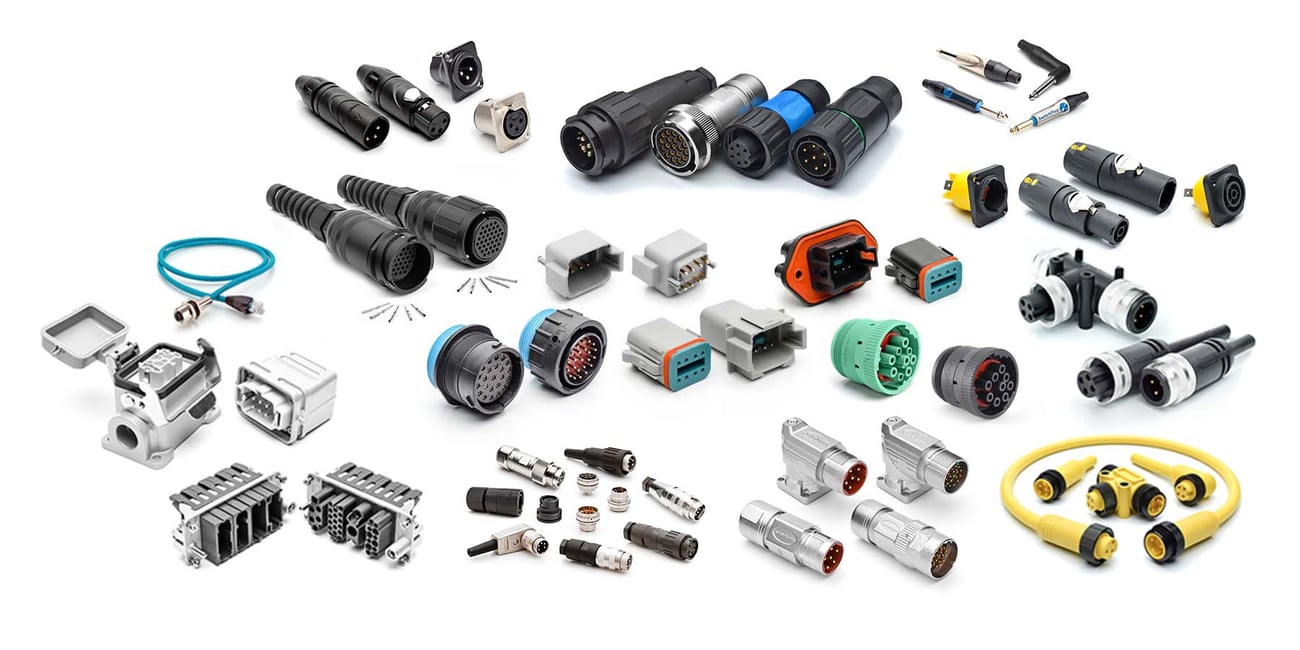

        PRODUCT LINES
