Year in Review

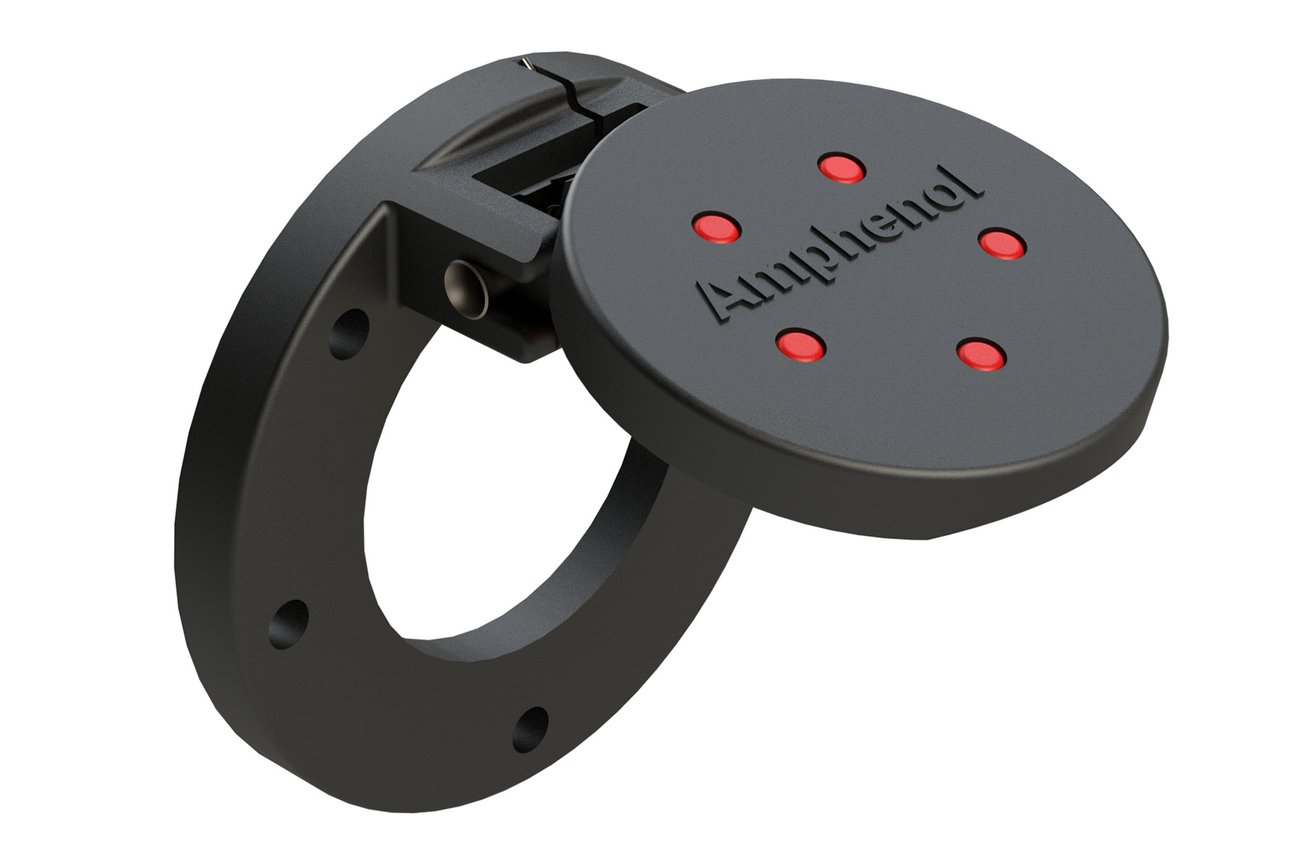

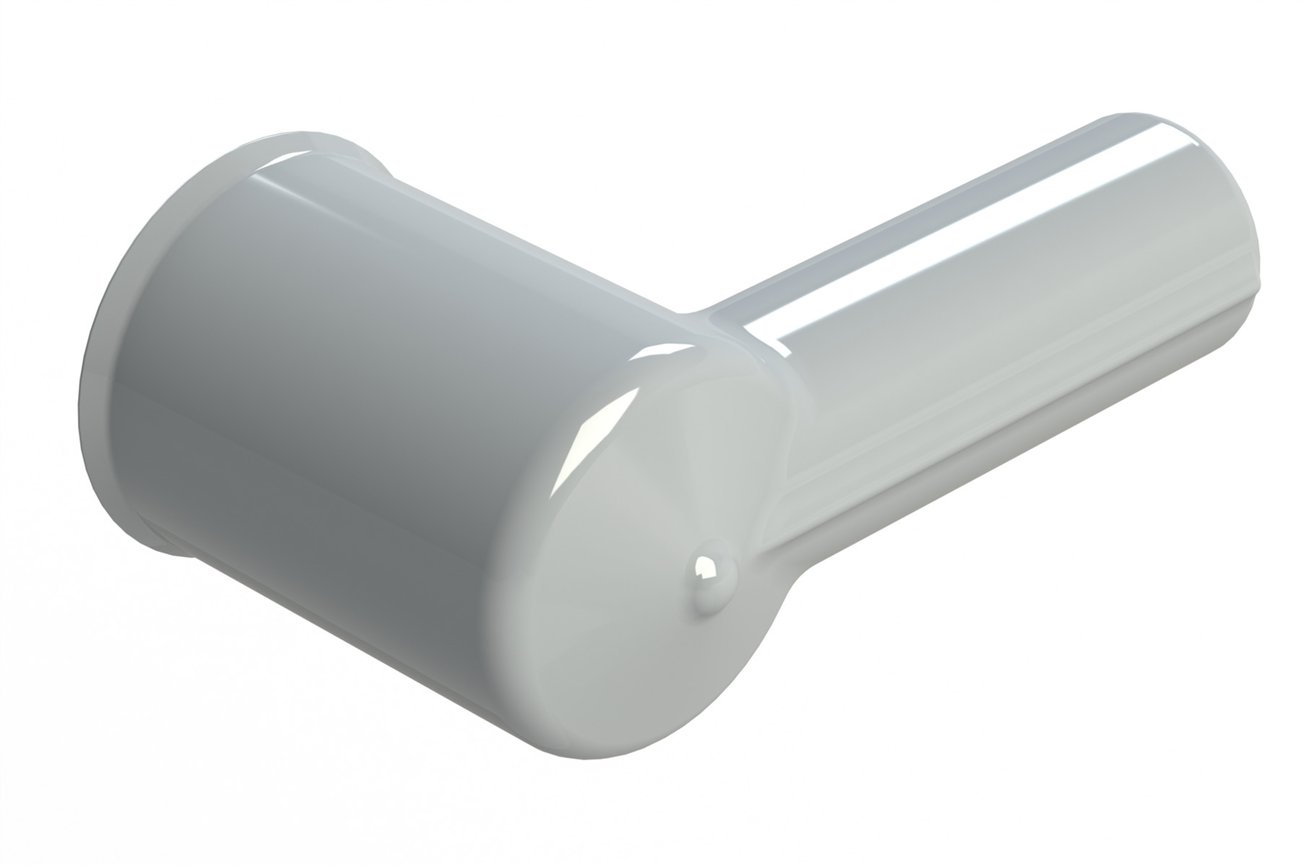

New Protective Caps for AT and ATM Series

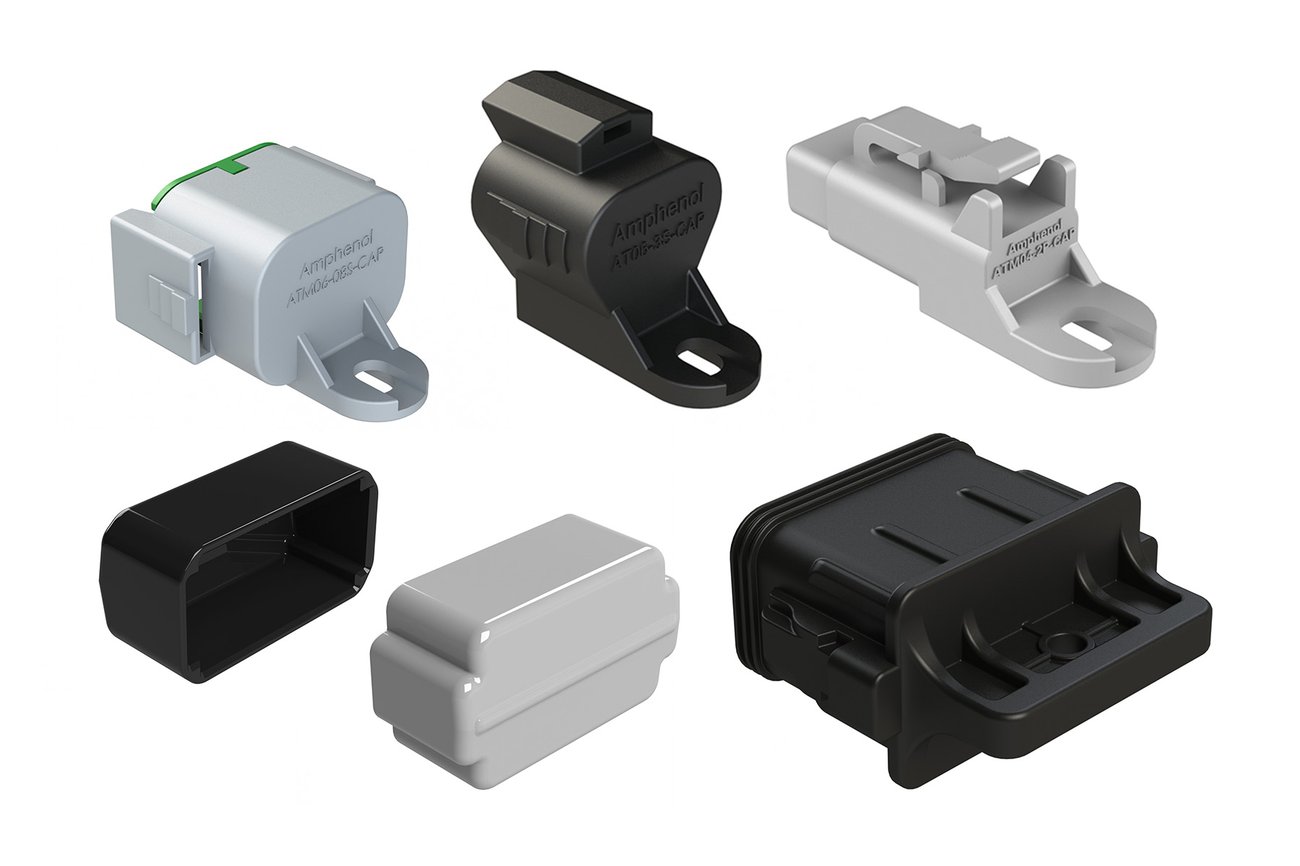

Amphenol Sine Systems’ A Series™ Caps are a low-cost, alternative to using standard connectors with sealing plugs and provide an optional protective covering for dust and other harsh, environmental and industrial elements. Protective plug & receptacle caps are IP67, IP68 and/or IP69K rated (in mated condition), depending on Series, and available across a variety of our A Series™ product lines in Thermoplastic, Elastomer and Plastisol materials.

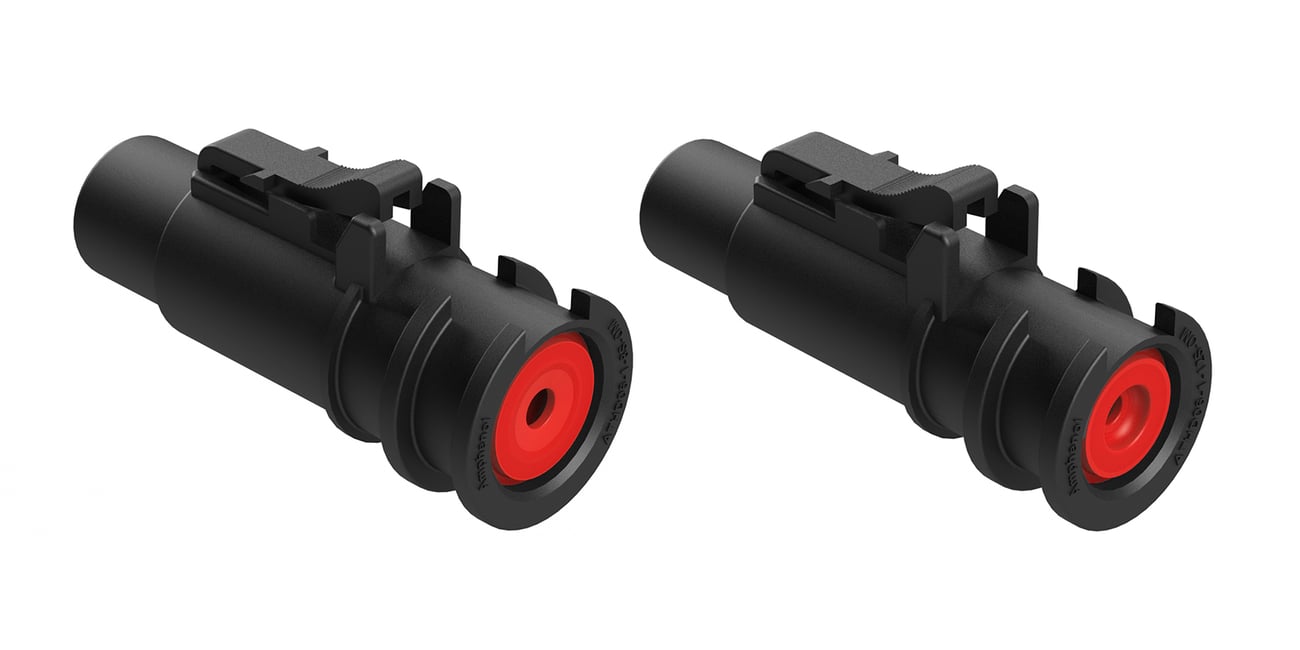

New Size 4/100A Contact Options with Endcaps (-E003)

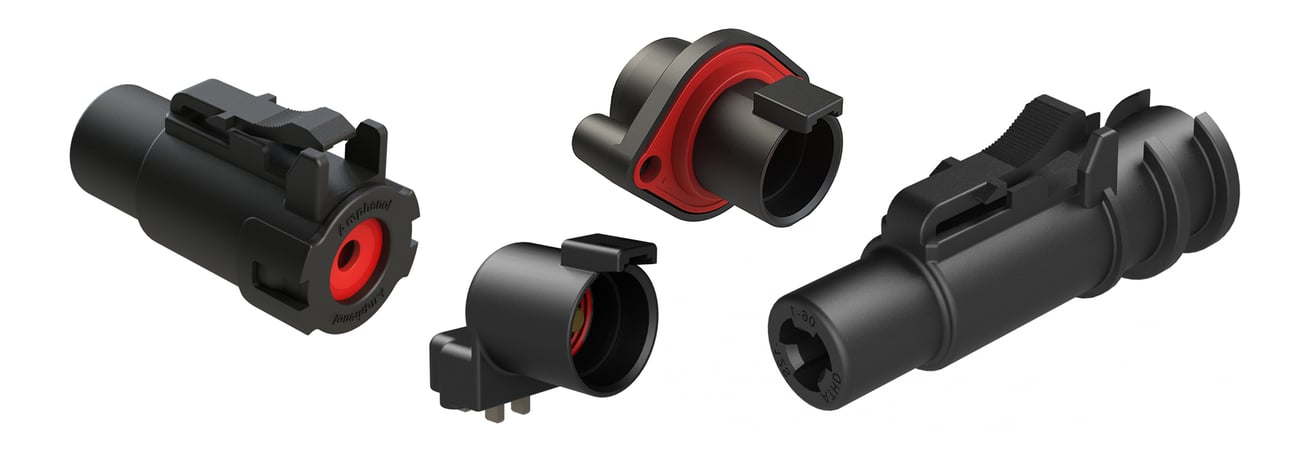

Amphenol Sine Systems’ ATHD Series™ Heavy Duty Power Connectors provide an environmentally-sealed connection system and solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible/tactile “click” provides circuit confirmation. Precision machined contact technology maximizes performance and durability while delivering up to 100A of power. Available in In-Line (Wire-to-Wire), BoardLock™, PanelMate™ and StructurePlus™ options. Also available as cable assemblies in a variety of standard lengths (1, 2, 4, 5 and 10 Meter).

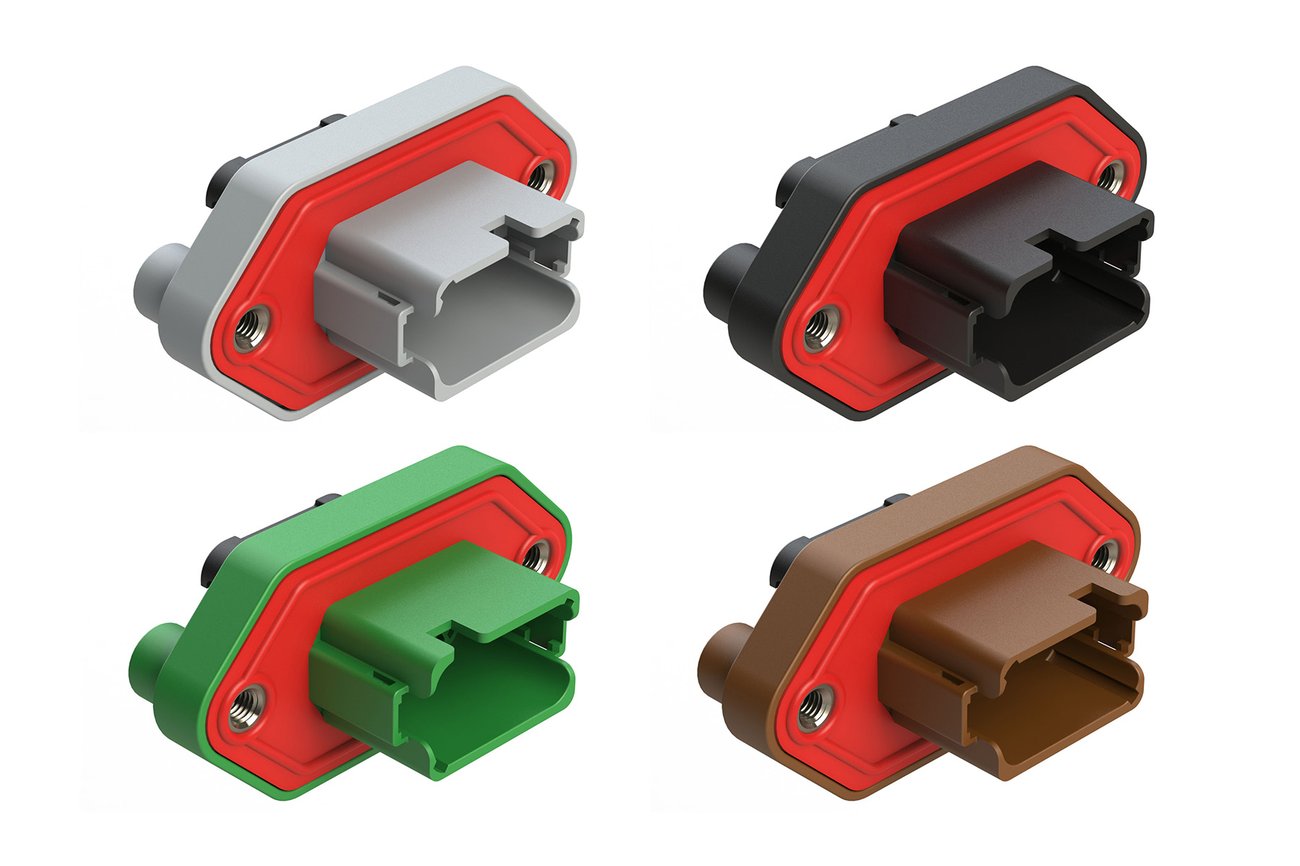

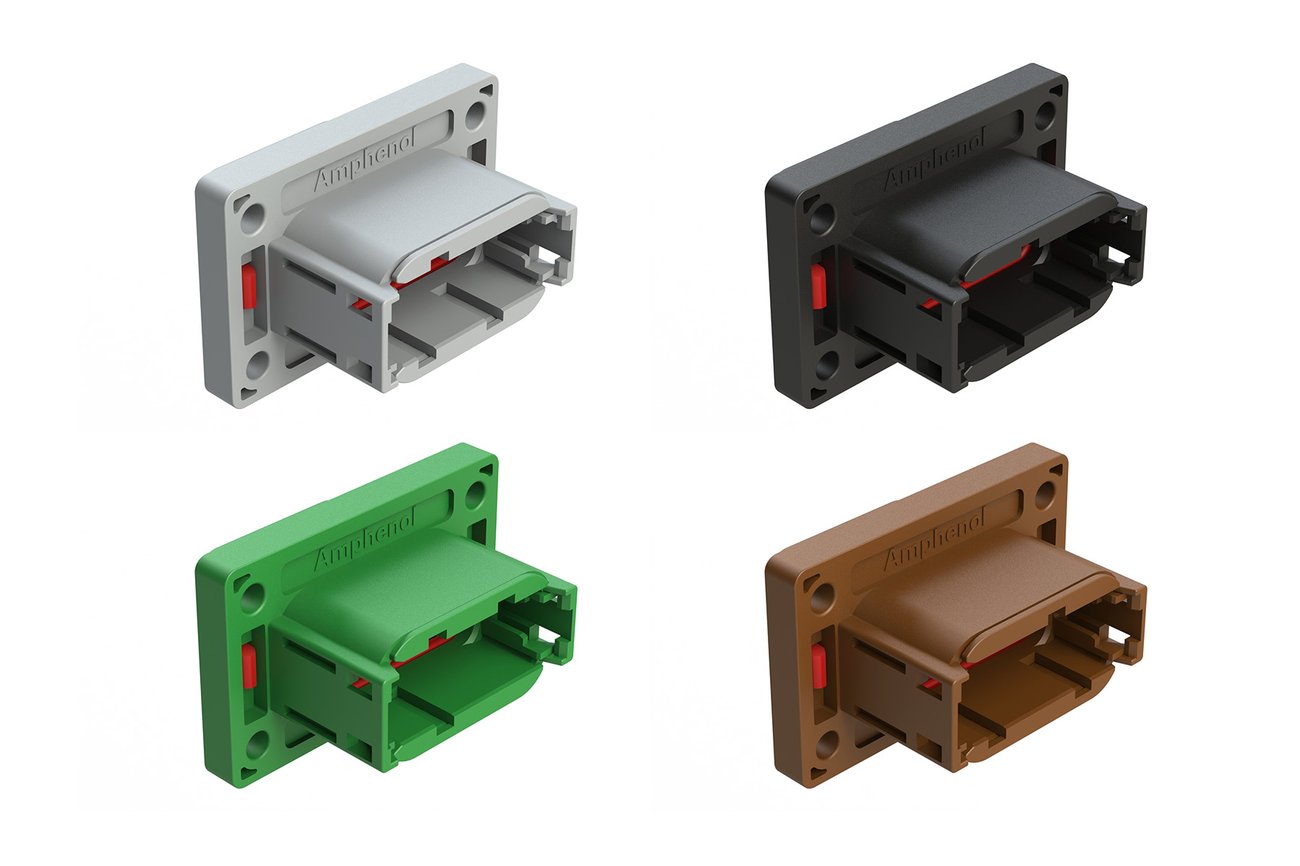

New 4 Position, 90° Right Angle, Flange Mount Receptacles w Feed Thru Wire Leads

-P052/P059
Size 12 Contacts
25A
Grey or Green Body

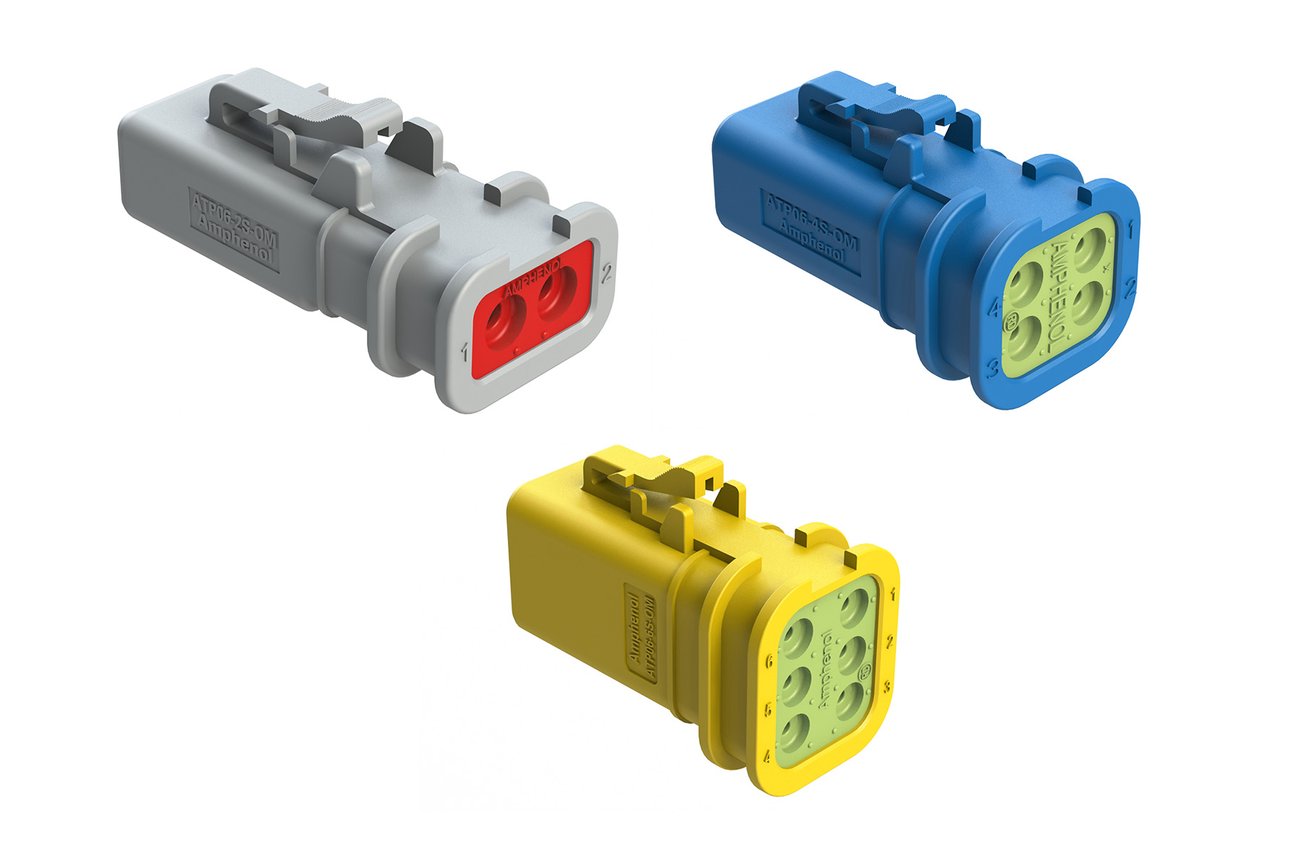

Amphenol Sine Systems ATP Series™ Connectors are designed as a high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 10-14AWG with Size 12 contacts handling up to 25A. All of our ATP Series™ connectors have been developed to be comparable with all other existing standard products industry-wide. Our ATP Series™ connectors utilize A Series™ Contacts. Available in BoardLock™, HYPERBUSS™, PanelMate™, StructurePlus™ and SR01/02 options.

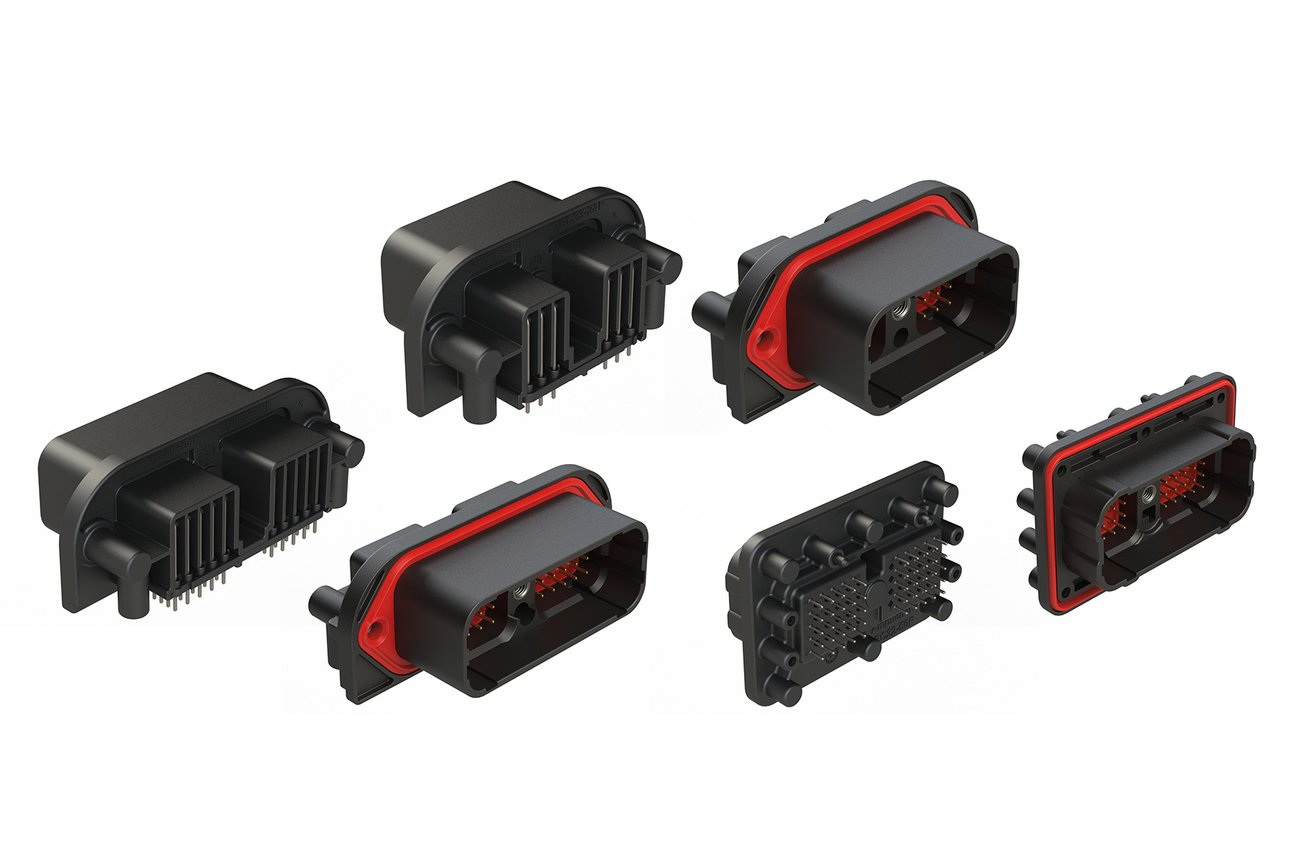

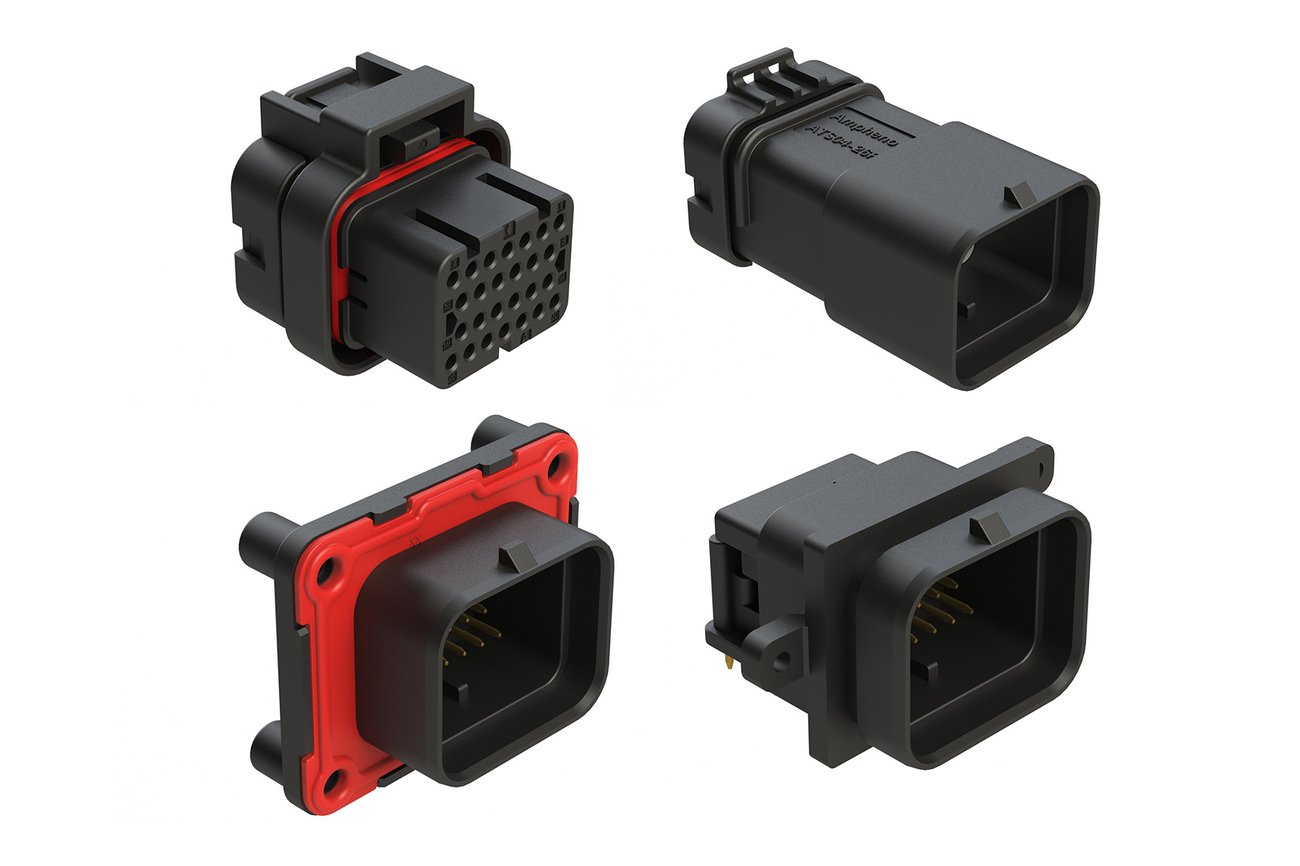

Rectangular, Thermoplastic Connectors for Harsh Environment Applications

Available in 26 and 34 position

Amphenol Sine Systems’ ATS Series™ Connectors are a high-performance, IP67 and IP69K rated (in mated condition), rectangular, thermoplastic, cost-effective solution for harsh environmental applications with superior seals and seal retention capabilities. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Receptacles are available in both 90° right angle and 180° straight pin PCB options, as well as traditional in-line options, and have been developed to be compatible with existing standard products industry-wide. ATS Series™ connectors utilize precision-engineered, 3-tang contacts featured in our ecomate® Family of products. Available in Plugs, Inline Receptacles, Flange Mount Receptacles and PCB Receptacles with BoardLock™.

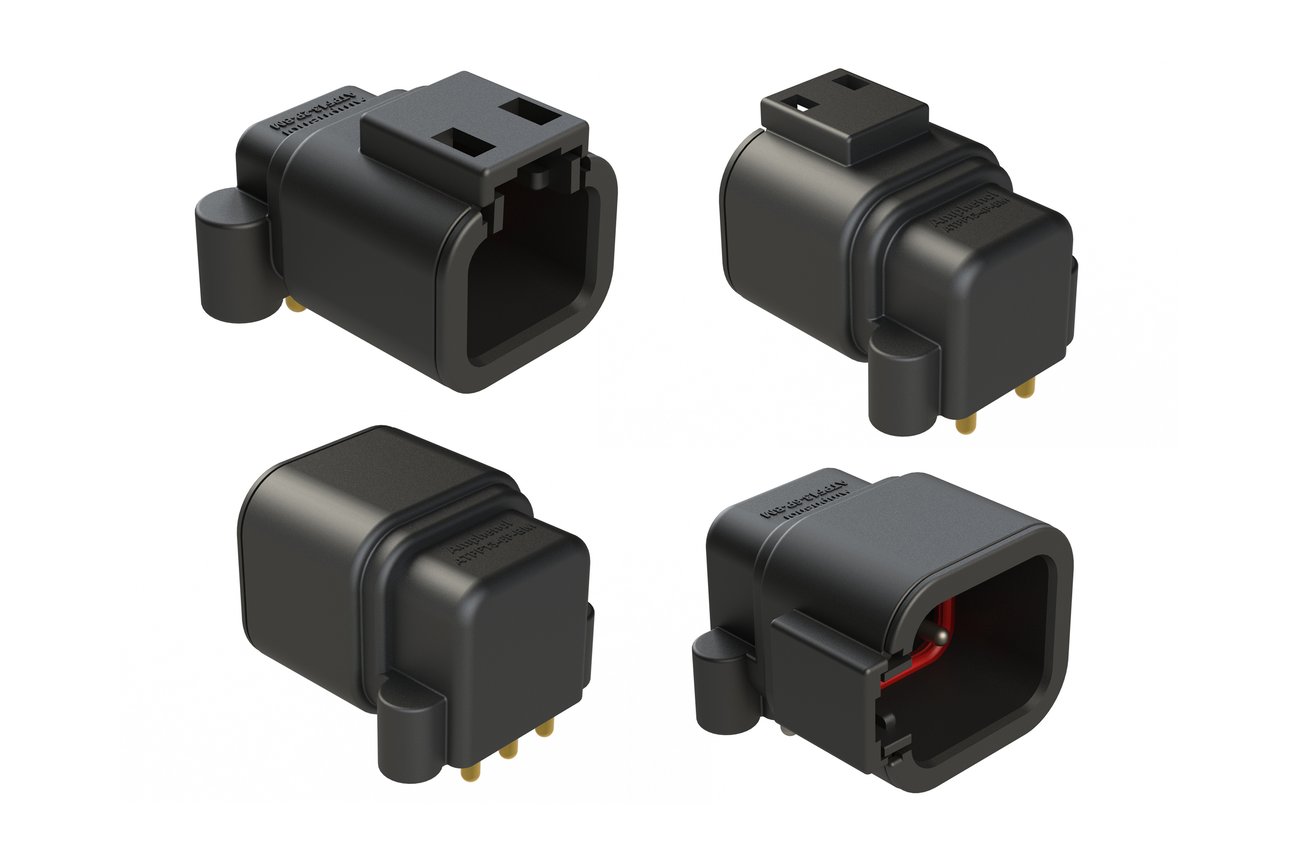

New 2, 4 and 6 Position BoardLock ATP Flangeless Receptacles

Size 12 Contacts / 25A
Flangeless, 90° Right Angle
Self-Threading

Amphenol Sine Systems’ BoardLock™ Family options include flanged or flangeless, 180° straight or 90° right angle pin-oriented, snap-fit or selfthreading, wire-to-board versatility with the proven reliability of the A Series™ environmentally-sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile and lightweight design, perfect for power or data signal applications. All BoardLock™ product lines accept A Series™ components and are compatible with other industry standard mating connectors. Available in AT, ATM, ATP, ATHD Series™, as well as ARC and ATS Series™.

Safe, Durable, and Reliable Industrial Equipment Connectors

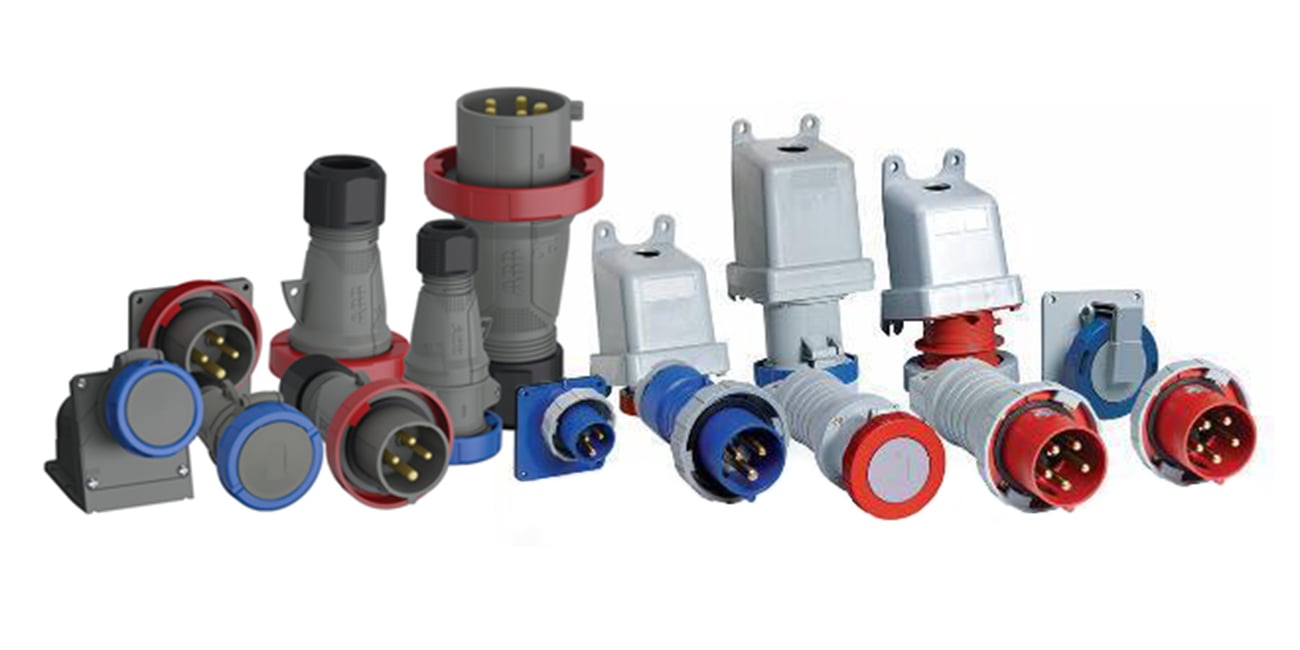

Amphenols' Industrial Plugs and Sockets are pin and sleeve connectors ideal for applications where it is necessary to connect and disconnect industrial equipment in a safe, durable, and reliable manner. Offered in amperages/voltages up to 125A/690V (Available in both Easy & Safe, Tough & Safe Series, International/CE compliant) and up to 100A/600V (Tough & Safe, UL/CSA compliant), all while meeting IEC 60 309-1, 60 309-2, 60 309-4, and UL standards. These pin and sleeve devices use high quality contacts that prevent stops and power breaks, offering a high degree of reliability. Safety is always important. By choosing our plug & socket connectors, you minimize the risk of short circuits, ensuring maximum personal safety for anyone using your equipment. Available in plugs, receptacles, inlets, and connectors.

Different applications and environments require different plugs and sockets. We offer two (2) options:

Easy & Safe (for simplified, basic applications)
Tough & Safe (for best performance in demanding, heavy duty applications)

Features

Available in 3, 4 and 5 position
IP Ratings: IP44, IP67 and IP69 (in mated condition)
Safety: Tested and approved by third-party certification bodies (See catalog for Approvals and Compliances)
Durability: Materials chosen for high resistance to most chemicals, to UV light and to impact
Reliability: High quality self-cleaning and calibrated contacts ensure reliability
Cost-saving: Designed for easy installation for long-term use

Amphenol Sine Systems was founded in 1967 and is a subsidiary of the Amphenol Corporation and is a leader in Industrial interconnect products. The company designs, manufacturers and supplies high-performance interconnect systems for a broad range of Industrial applications including factory automation, motion control, heavy equipment, alternative energy, rail mass transportation and advanced technology solutions for hybrid-electric vehicles. The company's headquarters are located Clinton Township, Michigan with global manufacturing, engineering, sales and service operations.

We can custom design, engineer and manufacture cable assemblies to your exact customer specifications and produce large or small quantities, all to the highest standards, delivered on-time and in-specification, all with a significant cost-savings over the competition. By combining locally-based Program Management & Engineering, along with the associated cost advantages derived from manufacturing in our low-cost production centers in North America and Asia, our Team will work with you to design the most cost-efficient and reliable interconnect system available.
